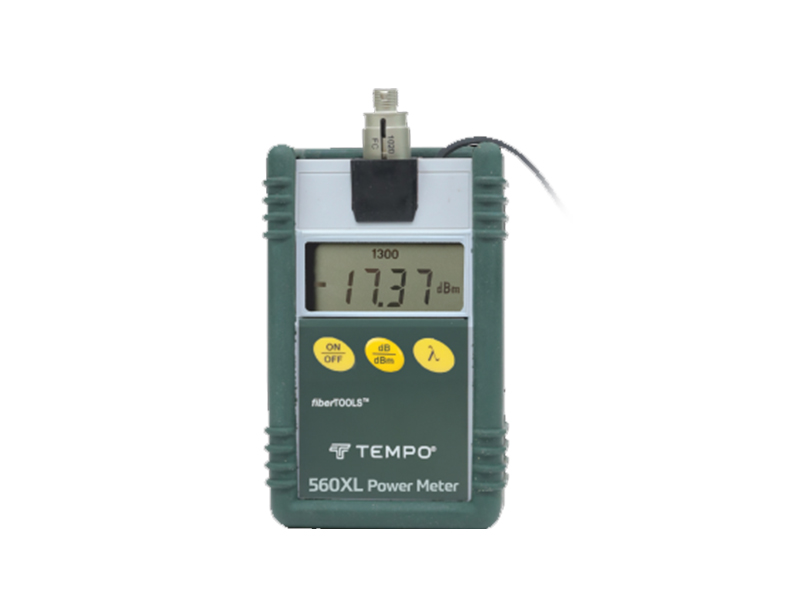

Don't confuse the small size of the Tempo 560XL-EMI with its ability to provide powerful results. The 560XL-EMI Optical Power Meter is the perfect tool for installing and testing fiber optic cabling.

The 560XL-EMI can be used to measure optical power, or can be used in conjunction with a LED or laser source for insertion loss testing on multi- and single-mode fiber optic cabling. The 560XL-EMI measures optical power at 850nm, 1300nm, 1310nm, and 1550nm.

It can store reference levels for faster, more efficient testing*. The 560XL-EMI also uses a Snap On Connector (SOC) interface for use with FC, SC, ST, and many other available connectors.

* When used in conjunction with Tempo 570XL-AS100-EMI or 580XL-EMI source units.

Features

• Easy To Use - Three ButtonsControl All Functions
• Loss Measurements In (dB)
• Power Measurements In (dBm)
• 0.01Db Measurement Resolution
• Multi-Wavelength Storage - Store And Recall Reference Power Levels For Faster, More Efficient Measurements
• Snap-On Connector Interface Adapts To FC, SC, and ST Connectors
• Long Battery Life
• User Selectable Auto Shut-Off
• Rugged And Splash-Proof
• Economically Priced
• EMI Shielded
*Snap-On Connector Interface Adapts To FC, SC, and ST Connectors for 560XL-EMI; customer to select and order for each instrument.
*Universal Connector Interface Adapts TO FC, SC and ST Connectors for 570XL-AS100-EMI and 580XL-EMI; customer to select and order for each instrument
