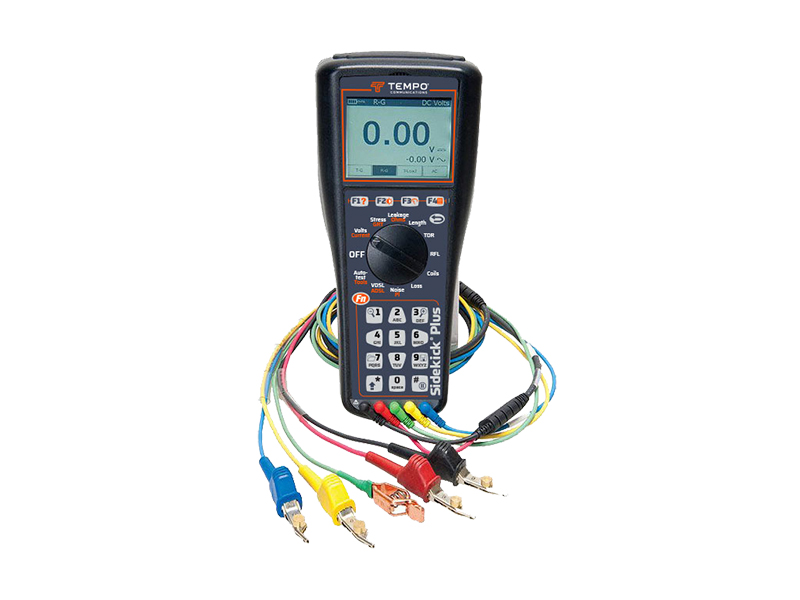

The 1155-5009 Sidekick® Plus Wideband Copper and DSL Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services.

Patented – Patent #6263047, 6621562, 7710122, 8232807, 8237459, 2710639, 2282499, 8564302

Features
• Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.

• Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.

• Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.

• No modules needed – Advanced cable diagnosis and troubleshooting in a single test set

• Advanced Dual Trace Pulse TDR (Zero Dead Zone)

• Resistive Fault Locator (Detects up to 20MΩ)

• 1GΩ Leakage Test (Insulation Resistance)

• Longitudinal Balance Test

• Ground Resistance Test

• Quite Line Noise (QLN) Test

• Stress Test

• AC/DC Voltage

• Resistance

• Open Meter

• Loop Current

• Circuit Loss

• Tracing Tone Generator

• Reference Tone
