A simple fiber optic tester kit, for low to modest test volume on single mode and multimode fiber optic systems

Typical testing applications
   • Optical power at 8 calibrated λ, -60 to +10 dBm range.

   • Optical loss on SM fiber at 1310 / 1550 nm, 60 dB range.

   • Optical loss on MM fiber 850 / 1300 nm 40 dB (@ 62.5um) range, EF compliant.

   • Reporting software for cable loss (manual data entry).

   • Optical continuity / tone checking, 12 Multi-Fiber ID fiber, 40 dB range.

   • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC interchangeable connector adapters.

Meter accepts PC & APC polish. Source accepts PC polish.

Meter 2 x AAA alkaline. Run time >300 hours.

Source 2 x AAA alkaline. Run time >35 hours.

Features

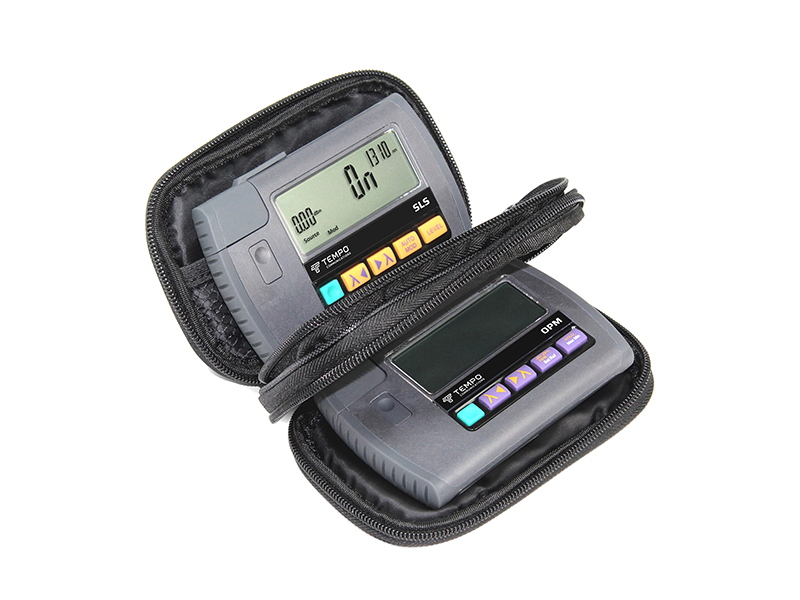

Includes:

• Fiber Optic Laser Test Source T9822A

• Fiber Optic LED Test Source T9812A

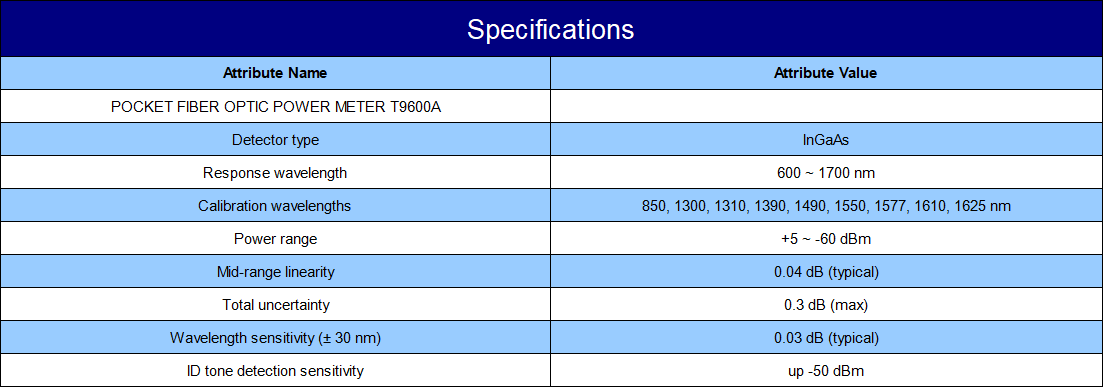

• Pocket Fiber Optic Power Meter T9600A

• Canvas Carrying Pouch
