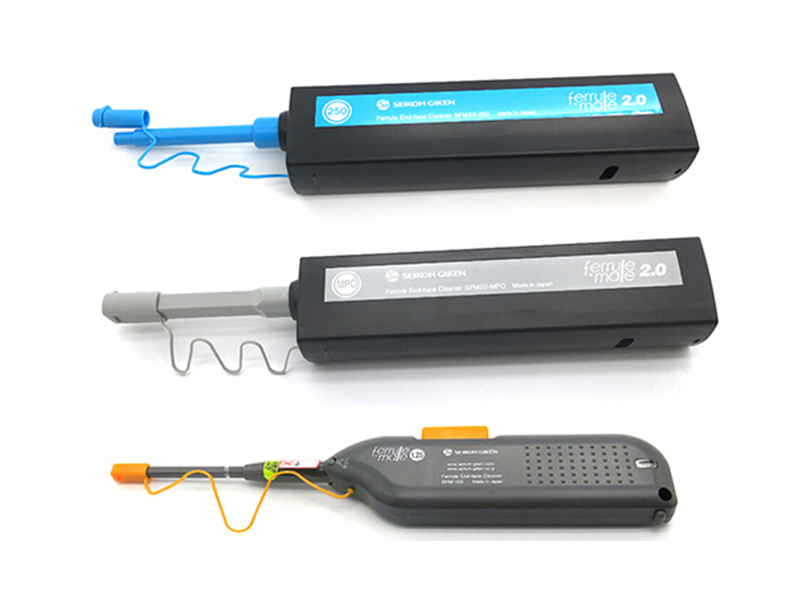

The main feature of FerruleMate 2.0 is its unique push button operation with a sharp contour that easily enters the through adapter. After hearing the click sound through the automatic cleaning tape, it confirms successful cleaning. FerruleMate 2.0 not only cleans the main fiber core, but also deeply cleans the contact surface when staying on the inner wall of the adapter, ensuring the cleanliness performance of the connector. A significant improvement of FerruleMate 2.0 is the combination of durability and reliability, while being easy to operate and cost-effective.

Application:

1. Internal modules and components of the equipment

2. Installation of outdoor FTTx equipment

3. Server, optical switch, router, and optical branching multiplexing female module

4. Cable assembly production process

5. Desktop tester and final shipment inspection

Main features:

1. Patented 360 degree rotating top provides ultra wide cleaning width

2. Simple push operation, expandable/foldable surface nozzle

3. Efficient cleaning function achieved through non-woven microfibers

4. No fuzzing or static electricity

5.800+cleaning equipment=ultra low-cost connector cleaning

6. Electrostatic loss plastic resin body and safety cloth feeding belt mechanism for electrostatic work

7. FC/SC/ST cleaning pen, suitable for universal 2.5mm outer diameter insert

8. LC/MU cleaning pen, suitable for universal 1.25mm outer diameter insert

The application of 9. MPO multi fiber plastic inserts exceeds industry requirements

10. Compliance with EU Directive 95/2002/EC (ROHS)

Clean technology patents:

1. The guide rail adopts an anti slip tape machine to ensure high reliability

2. The bidirectional rotation of the end provides superior cleaning of the plug end face
