1. Integrated: Accurately peel off the outer sheath, empty the foaming medium, eliminate the aluminum pipe and chamfer it

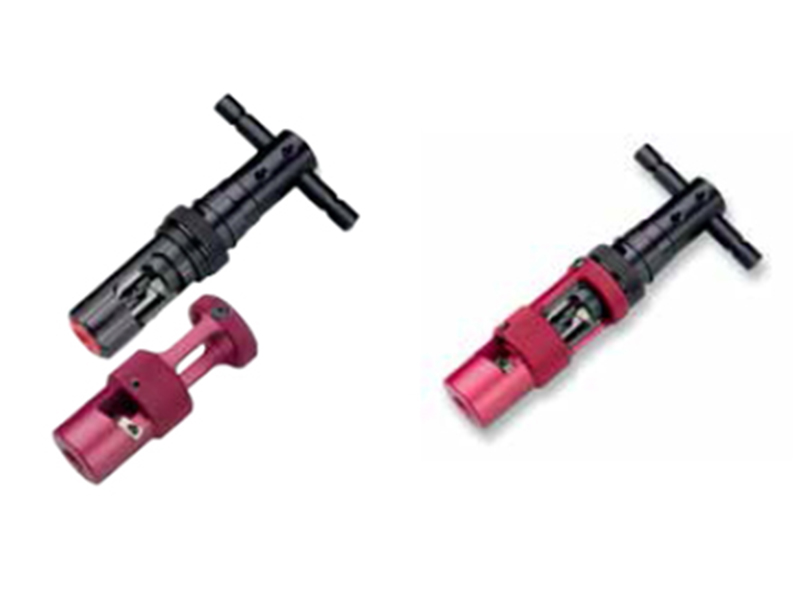

2. New design: The use of a "quick replacement" rotating ring makes it easy to attach the jacket stripping part (QJST) to the main body of the hollowed stripping tool

3. When used for waterproof cables, colored sheath stripping parts (QJST) are added and used in the following two steps of operation

Step 1: Use separable QJST to peel off the outer sheath

Step 2: Peel the waterproof layer off the cable and complete the pre-treatment using QCST's hollowed out stripping component

When used separately to peel off the waterproof cable sheath, the unique design of the sheath stripping component (QJST) allows it to automatically peel off a 3.5 inch (88.9 mm) long outer sheath when rotated to the bottom

5. The sheath stripping parts and the hollowing/stripping tool guide tubes are made into different colors for easy adaptation to different cables

6. The chamfer bar lock is installed at the factory. The 1-inch (25.4mm) lock is a tool for 412-750 series coaxial cables, and the 1-inch (1/16) (27mm) lock is a tool for 840-1160 series coaxial cables

7. The preset outer sheath cutting blade ensures that it does not scratch the aluminum sleeve

8. Manual or combined with electric drill operation:

The QCST tool is equipped with a standard "T" handle with a built-in 3/8-inch (9.5mm) drill bit

The QCST-R tool is equipped with a thorn wheel "T" handle and a separate 3/8-inch (9.5mm) drill bit

9. Durable, sturdy, all metal structure

10. The processed aluminum sleeve cutting blade ensures that it does not scratch the aluminum sleeve

11. Slotted spiral heat treated steel drill bits

12. Use CC-100, CC-200, or CC-200EUR center conductor cleaner/scraper to remove excess foam media remaining on the conductor after hollowing and peeling

13. US Patent Numbers: D431, 441

14. Length: 8.1 inches (205.7 mm)

15: Weight: 525 grams
