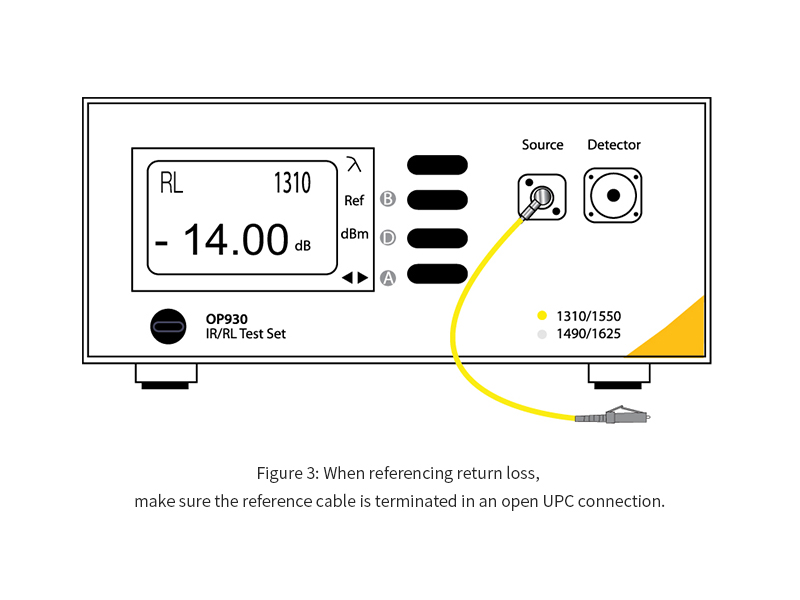

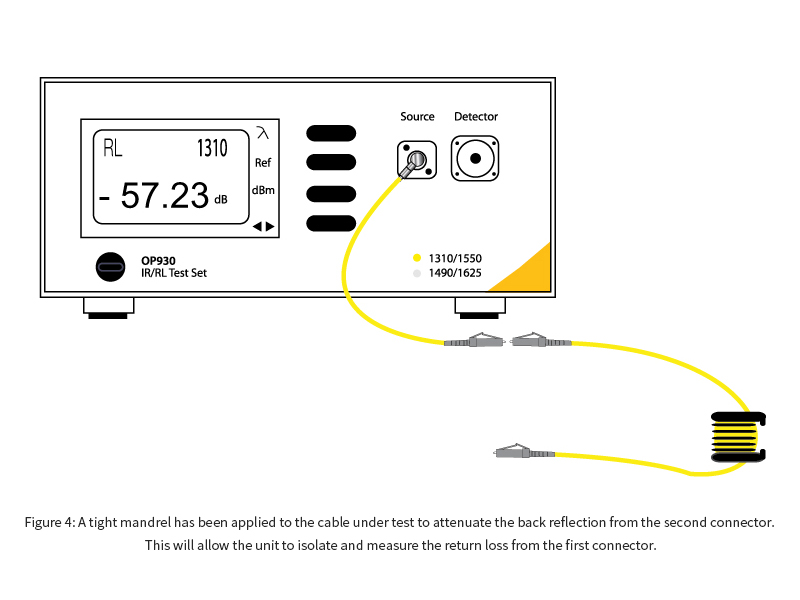

Return loss measurements from 10dB to 80dB on single mode units and from 10dB to 58dB on multimode units

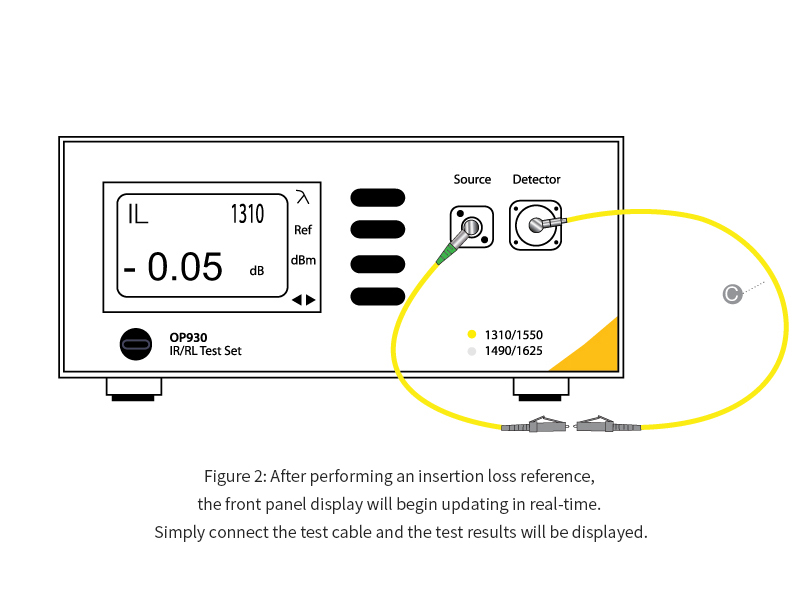

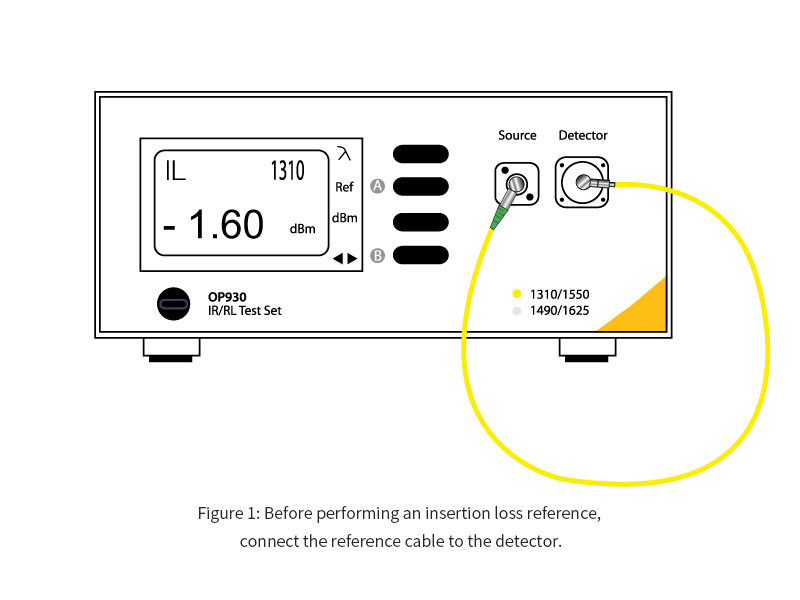

Fully automated, concurrent measurements of insertion loss and return loss

Multimode instrument uses LEDs for measuring IL with proper fill conditions to qualify GbE cables
(Can be designed to meet encircled flux or other launch conditions such as 70/70)

Various detector options for simplex, duplex, MTP/MPO multifiber connectors, and others

Can be controlled remotely via USB using OPL Series software or OptoTest DLLs

Integrated temperature monitoring

Convenient benchtop size (19-inch rackmount frame available upon request)

Quad-wavelength (FTTX) single mode model also available upon request
