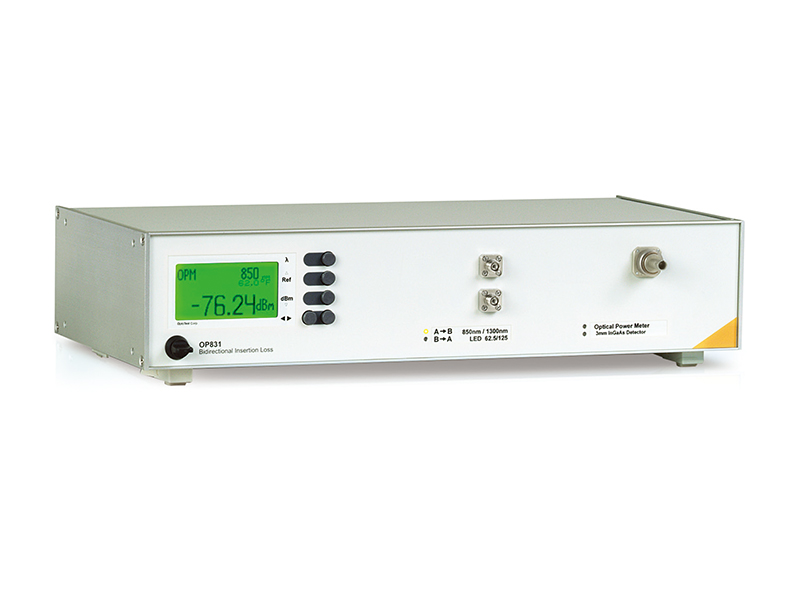

OP831 is designed for bidirectional insertion loss testing of single core and multi-core jumpers. The built-in light source optical power meter, along with OPL8 testing software, can achieve fully automatic bidirectional insertion loss testing.

This instrument can be installed on a rack, with single mode and multimode versions, and can choose from single wavelength or dual wavelength lasers or LED light sources.

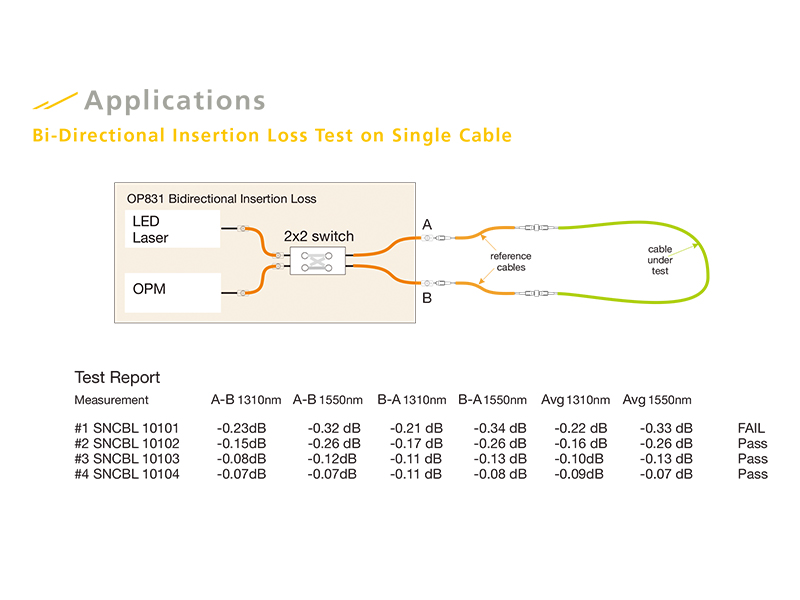

Sequential bidirectional automatic measurement of insertion loss

Integrated high-precision optical power meter testing range:+10dBm to -80dBm

Integrated laser or LED light source, equipped with most commonly used wavelengths

Single mode dual wavelength (1310nm/1550nm) testing, single optical interface

Multimode dual wavelength (850nm/1300nm) testing, independent optical interface

Under fill, full fill, over fill, controllable emission conditions for multimode optical fibers

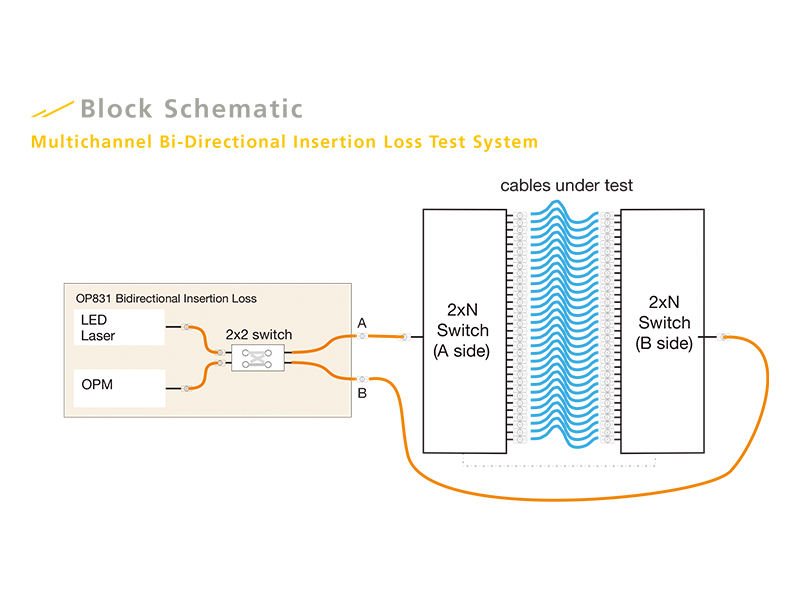

Expandable to multi-channel versions, with only the addition of 2xN optical switches

USB port supports remote control

The OPL8 application software integrates fully automatic bidirectional testing functions, including data reading, sequence number generation, and test report generation
