OP250
Model Number:OP250Brands:OptoTestRichen Code:

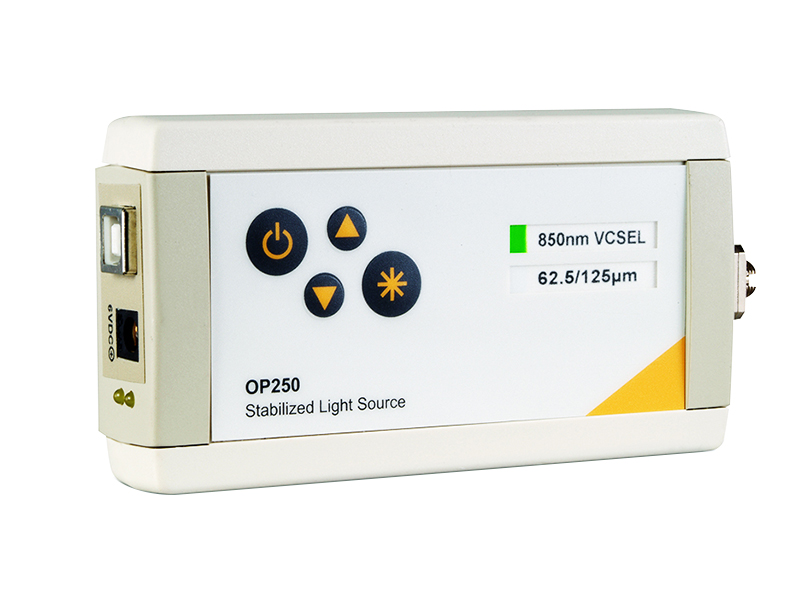

The OP250 is a configurable stabilized light source available with a variety of LASERs or LEDs. Offered in a single or dual port configuration with selectable wavelengths, various power levels and industry standard optical interfaces
Download

Source stability of 0.02dB per hour (per 1ºC variation)*

Wide variety of source wavelength options, including 635nm, 850nm, 1310nm, and 1550nm among many others

Various types of sources including LEDs, Fabry-Perot LASERs, and VCSELs

Customizable fiber type such as 9/125μm, 50/125μm, 62.5/125μm, 105/125μm, 100/140μm, and POF

Many common source connector outputs such as FC, SC, and ST

Single or dual port configuration

Remote control of output power via USB

Integrated temperature monitoring

Internal rechargeable Lithium-Ion battery

* Standard wavelengths
Single Mode: 1310/1550nm; Multimode: 850/1300nm
