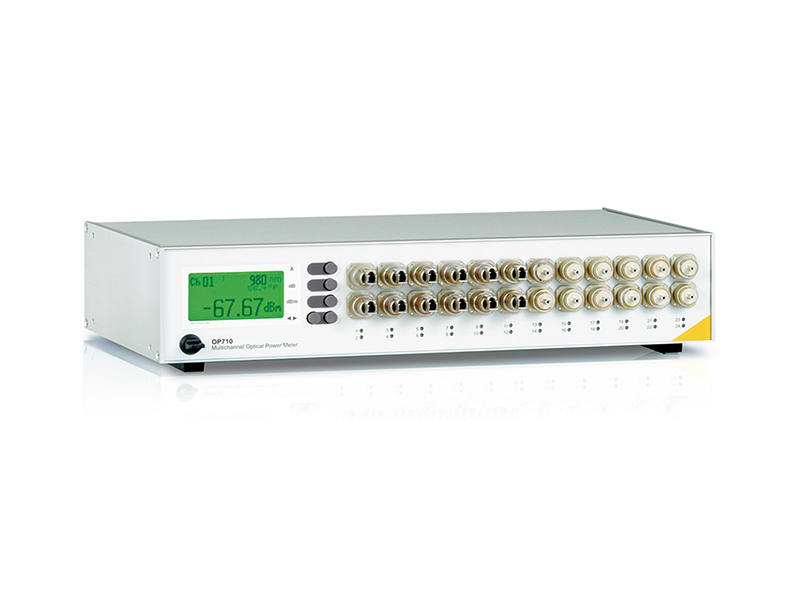

OP710 Multi-channel optical power meter

Model Number：OP710Brands：OptoTestRichen Code：82019400

OP710 provides an economical solution for measuring multi-channel optical power. Unlike other systems, this instrument uses independent optical power meters for each channel to obtain data non parallel across all channels. OP710 comes in various versions from 4 channels to 24 channels. At the same time, the probe material is optional, and the adapter model is selected to be suitable for various connector testing.

Download

Consultation

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

Optional versions from 4 channels to 24 channels

Measurement range:

InGaAs probe:+6dBm to -72dBm

Silicon probe:+3dBm to -65dBm

Wavelength range: InGaAs probe: 830nm to 1700nm

Silicon probe: 400nm to 1100nm

Relative accuracy: 0.02dB

Different sampling rates through software

Remote control via USB

Built in room temperature monitoring

Convenient 19 "rack

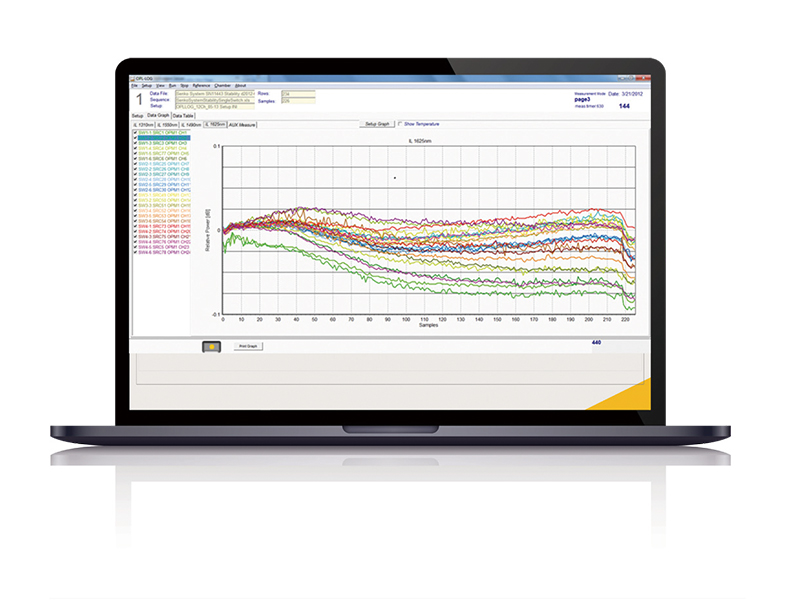

OPL-7 software

Optical power can be obtained from multiple OP710s

Simultaneously obtaining data from up to 300 probes at a rate of 80 samples per second

Store in Excel format
