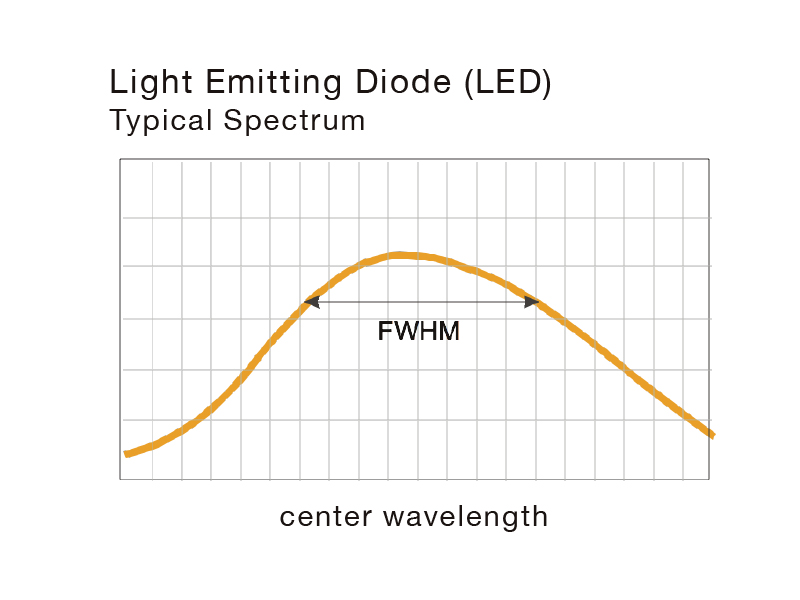

Single/Dual Channel LED Source
The LED Source offers controlled launch conditions to meet specific CPR (Coupled Power Ratio) and the more detailed IEC
(International Electrotechnical Commission) requirements. Offered standard with 62.5μm fiber and 850nm or 1300nm LEDs,
it can also be configured with other fiber sizes and industry-available wavelengths to meet unique applications.
Factory configurable wavelength mix
Adjustable power level from 0% to 100% either through the front panel or USB port
Controlled launch condition, customer specified
Dual wavelength operation with internal WDM
Support of most common connector options (FC, ST, SC, LC, etc…)
Single/Dual Channel LASER Source

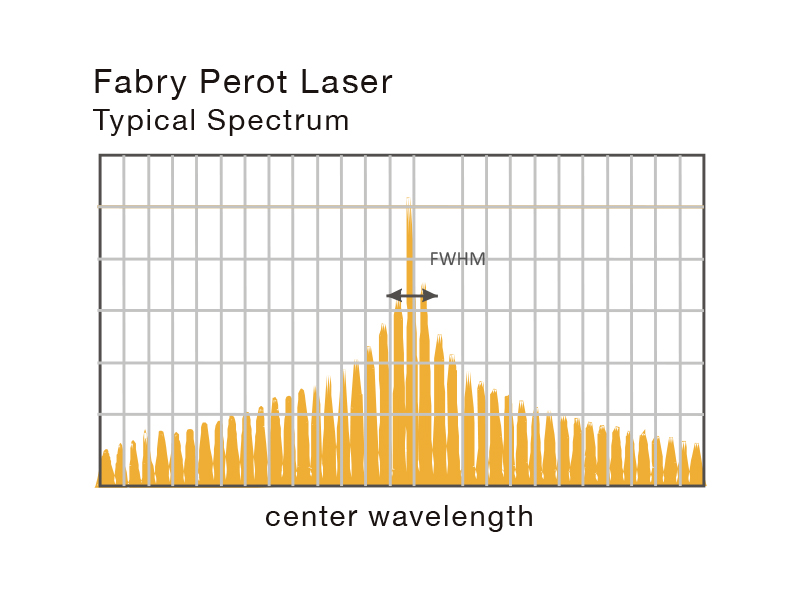

The stabilized LASER Source offers Fabry Perot (FP) or distributed feedback (DFB) LASERs for standard wavelengths such as 635nm, 850nm, 1310nm, 1490nm, 1550nm, and 1625nm. Sources may be combined internally into a single output port.
Adjustable power level up to +13dBm, depending on the LASER, either through the front panel or USB port
Support of most common connector options (FC, ST, SC, LC, etc…)
Supports Thermally Electric Cooled LASERs
