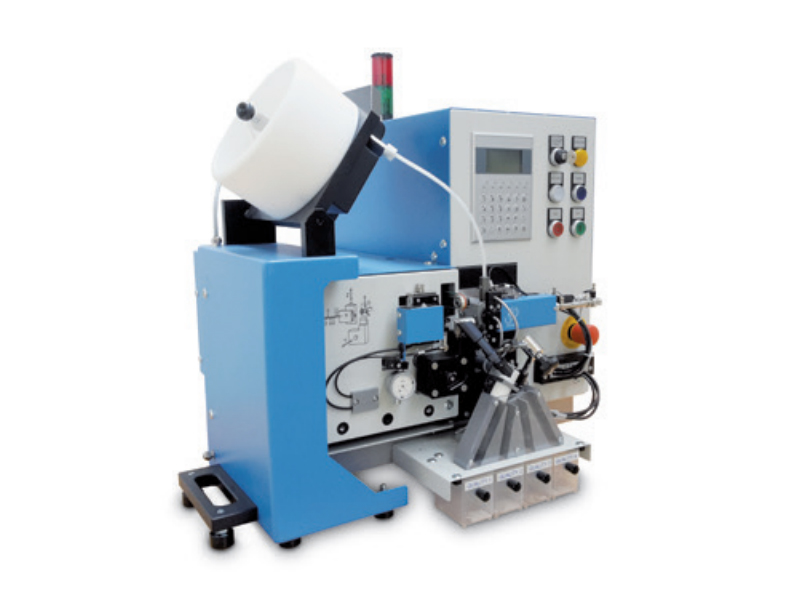

Automatic feeding and sorting concentricity, roundness and angle measuring device for ferrules and sleeves.

User benefits：

Minimize cost per measurement
• Increase throughput
   • Minimized cycle time >less amount of equipment >less labour cost
   • Measure under industrial condition close to fabrication
  • Minimized setup and calibration time (assisted setup)
   • Maximized reliability and accuracy (less re- testing and comparison testing
   • Choose specific machine fitting your needs

Increase value of measurement
• Improve reliability and accuracy of measurement

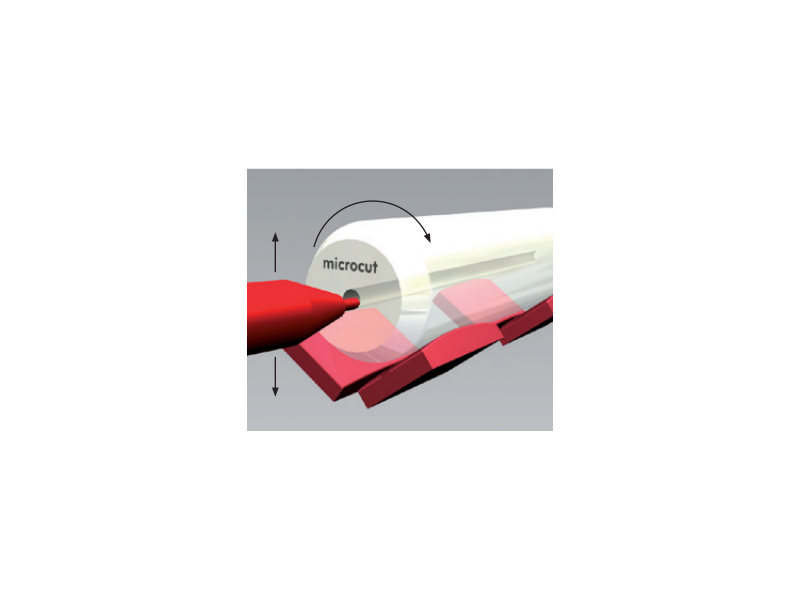

  • Measure close to function (Measure inside the bore at defined depth of termination)
  • Document your measuring results automatically and easily
  • Make sharp margins between categories
  • Use the market reference measuring machine

Avoid hidden costs because of lD angle problems
• Measure the angle of bore in order to have better image of the performance of your finished product
  • The angle of the lD together with the concentricity has a significant impact on the performance of a FO ferrule
  • Analyse your injection mould tool before producing bad blanks
  • Detect blanks- problems before machining them costly
  • Detect ID angle problems on your Ferrule before terminating the connector costly

• Shortest cycle time
  • During measurement the handling system prepares the next workpiece

• Various measurement options
  • Concentricity measurement
  • Angle measurement
  • Multiple measurements of one part
  • Programmable measuring depth

• High precision
  • High precision measuring head
  • Vibration insulation

• High repeatability
  • High precision mechanics guarantees the repeatability of the setup

• High reproducibility
  • Automatic Zero point search in X-Axis
  • Semiautomatic setup procedures / step by step instructions

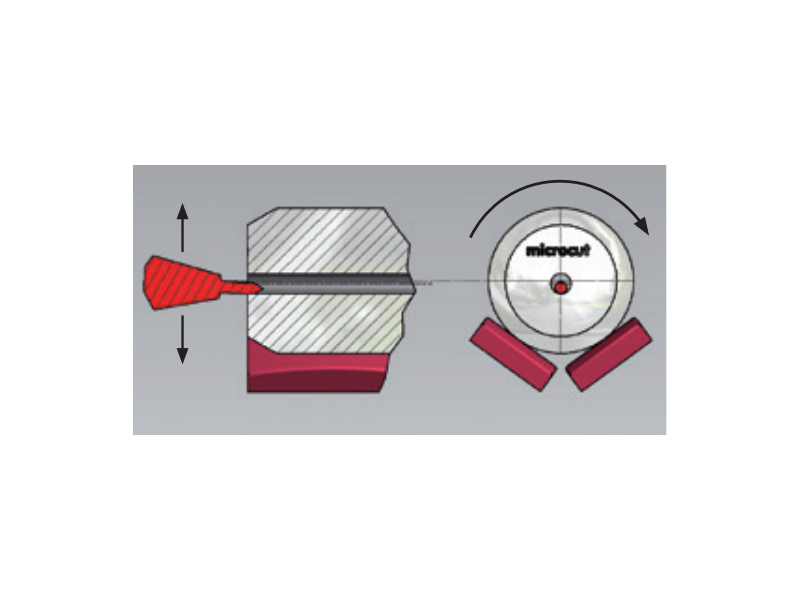

• Diamond workpiece support
  • No jumping effect of workpiece

• Data collecting to USB stick
  • Direct import to MS Excel sheet

• Custom specific machines
  • Manual or automated workpiece feeding and sorting
  • Automatic quality selection groups 1-4

• Customized solutions
 • All in house engineering support for customized solutions

 • Easy operating
  • Step by step guided setup procedure and zero position search routines
