Soft-Strip® MS1-RT-07 Dia. Guide
Model Number:MS1-RT-07Brands:Micro ElectronicsRichen Code:85011300
Soft-Strip® MS1-RT-07 Dia. Guide,.0075 Dia. Guide;size:up to 180um, Dia. Guide。

Soft-Strip® MS1-RT-07 Dia. Guide,.0075 Dia. Guide;size:up to 180um, Dia. Guide。

Micro-Strip® stripping tools fromMicro-Electronics strip bufferedfber up to 2360um, and jacketedfber up to 3.5mm quickly andeasily.
You can use two standard handles with interchangeable cutter blade sets, fiber guides and fiber guide locks to strip all sizes.  Simply select and install the proper cutter blade sets, tube guides, and tube guide locks.
Or if you prefer, purchase Micro-Strip® tools individually fitted for the fiber or jacket diameter you specify with cutter blade sets and fiber guides already installed.

Features
• Precision Non-Nicking Stripping Design
• Strips Coating/Buffer up to 2350 μm
• Strips 18-40 A.W.G. Fine Wire
• Interchangeable / Replacement Stripping Blades & Fiber Guides

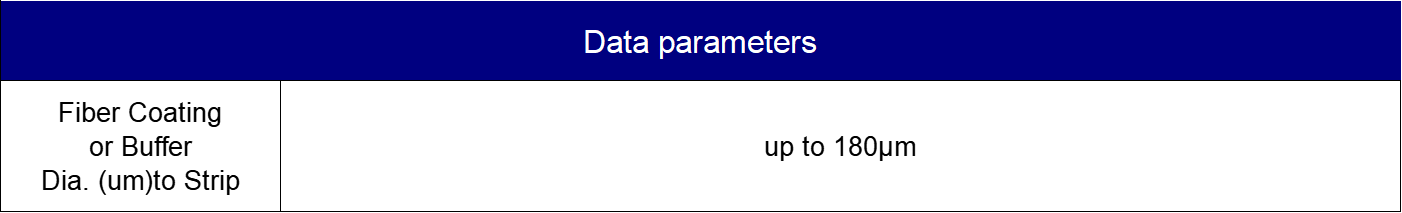

规格参数(1)

辅料配件(1)

Q: Thermal Stripping Procedure
A:  As shown in the figure

问答(英)


Q: Micro-Strip® /Soft-Strip® Cutter Blade Replacement
A: As shown in the figure

问答(英)1


Q: Soft-Strip® Tool Breakdown
A: As shown in the figure

问答(英)2

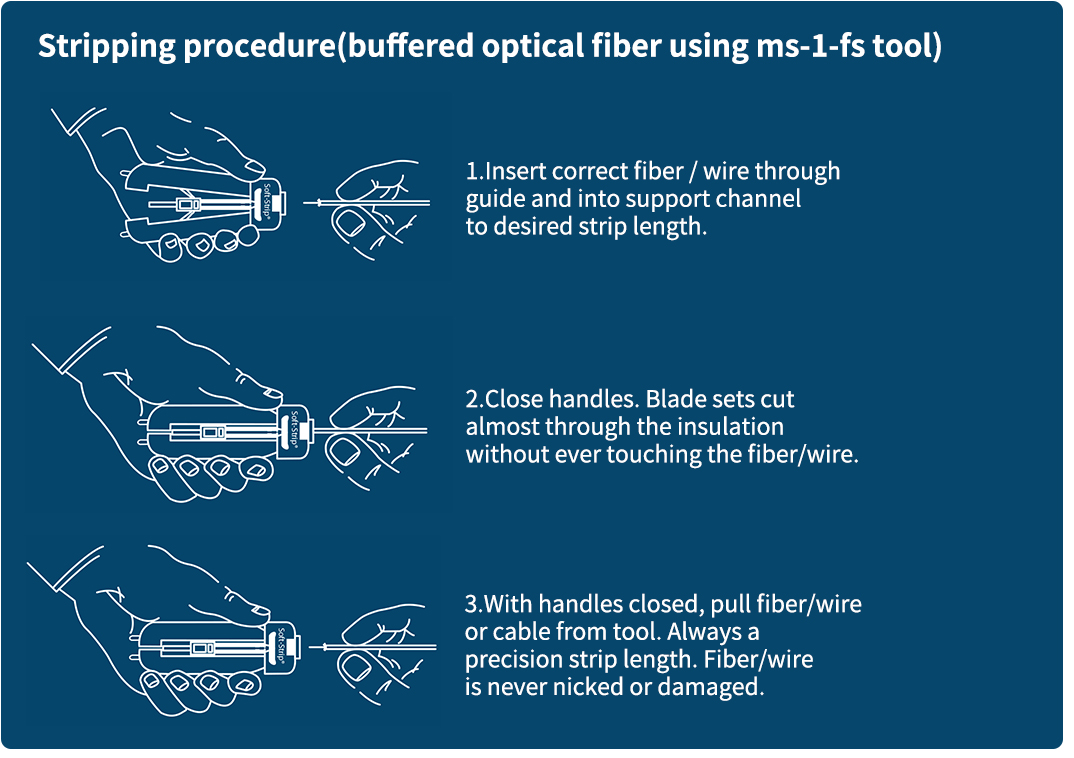

Q: Stripping procedure(buffered optical fiber using ms-1-fs tool)
A:  As shown in the figure

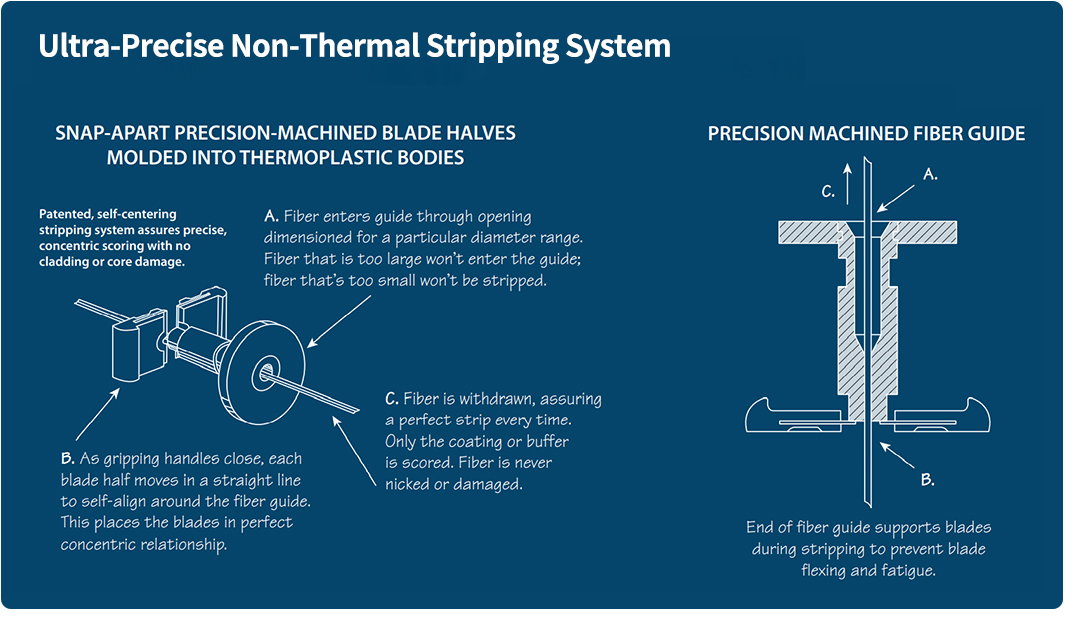

Q: Ultra-Precise Non-Thermal Stripping System
A:  As shown in the figure
