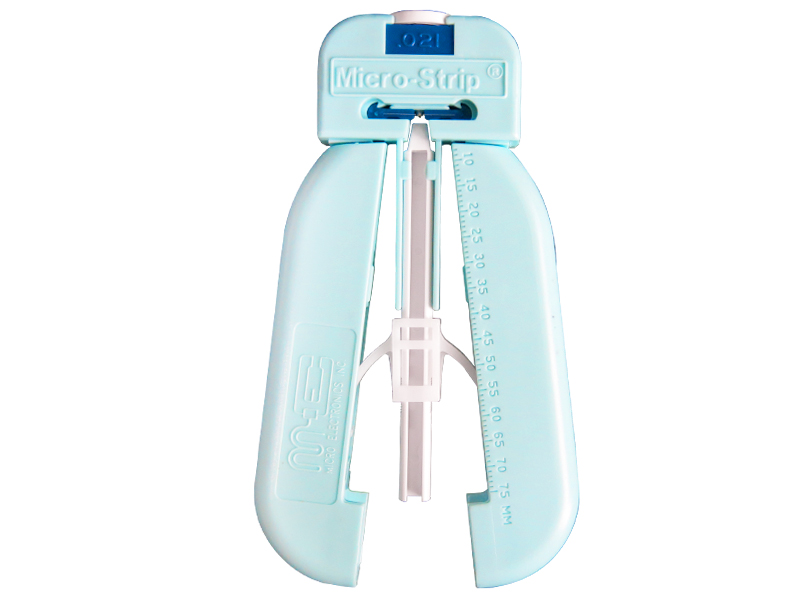

Micro-Strip® MS1-21S-40-FS Precision Stripper
Model Number:MS1-21S-40-FSBrands:Micro ElectronicsRichen Code:85001500
Micro-Strip® MS1-21S-40-FS Precision Stripper,Fiber Coating or Buffer Dia. (µm)to Strip:889μm - 1016μm,Fiber Cladding Diameter to Expose:435μm - 500μm,Blade Set:MS1-RB-21S,Guide Assembly:MS1-RT-40,Buffer Stripping Handle:MS1-FS. Micro-Strip® stripping tools fromMicro-Electronics strip bufferedfber up to 2360um, and jacketedfber up to 3.5mm quickly andeasily. You can use two standard handles with interchangeable cutter blade sets, fiber guides and fiber guide locks to strip all sizes. Simply select and install the proper cutter blade sets, tube guides, and tube guide locks. Or if you prefer, purchase Micro-Strip® tools individually fitted for the fiber or jacket diameter you specify with cutter blade sets and fiber guides already installed.

Micro-Strip® MS1-21S-40-FS Precision Stripper,Fiber Coating or Buffer Dia. (µm)to Strip:889μm - 1016μm,Fiber Cladding Diameter to Expose:435μm - 500μm,Blade Set:MS1-RB-21S,Guide Assembly:MS1-RT-40,Buffer Stripping Handle:MS1-FS.

Micro-Strip® stripping tools fromMicro-Electronics strip bufferedfber up to 2360um, and jacketedfber up to 3.5mm quickly andeasily.
You can use two standard handles with interchangeable cutter blade sets, fiber guides and fiber guide locks to strip all sizes.  Simply select and install the proper cutter blade sets, tube guides, and tube guide locks.
Or if you prefer, purchase Micro-Strip® tools individually fitted for the fiber or jacket diameter you specify with cutter blade sets and fiber guides already installed.


Features
• Precision Non-Nicking Stripping Design
• Strips Coating/Buffer up to 2350 μm
• Strips 18-40 A.W.G. Fine Wire
• Interchangeable / Replacement Stripping Blades & Fiber Guides

MS1-21S-40-FS规格参数(英)

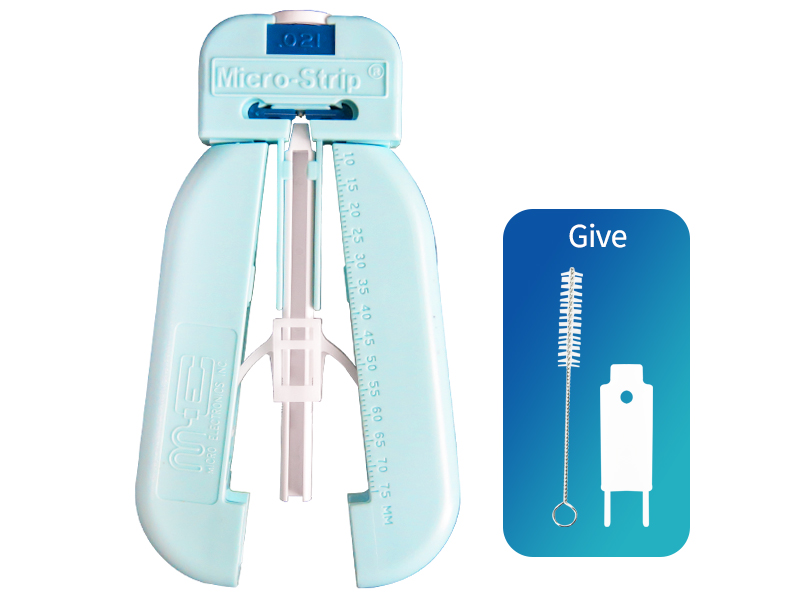

辅料配件(英)

Q: Stripping procedure(buffered optical fiber using ms-1-fs tool)
A:  As shown in the figure

使用方法(英)


Q: Ultra-Precise Non-Thermal Stripping System
A:  As shown in the figure

细节图(英)
