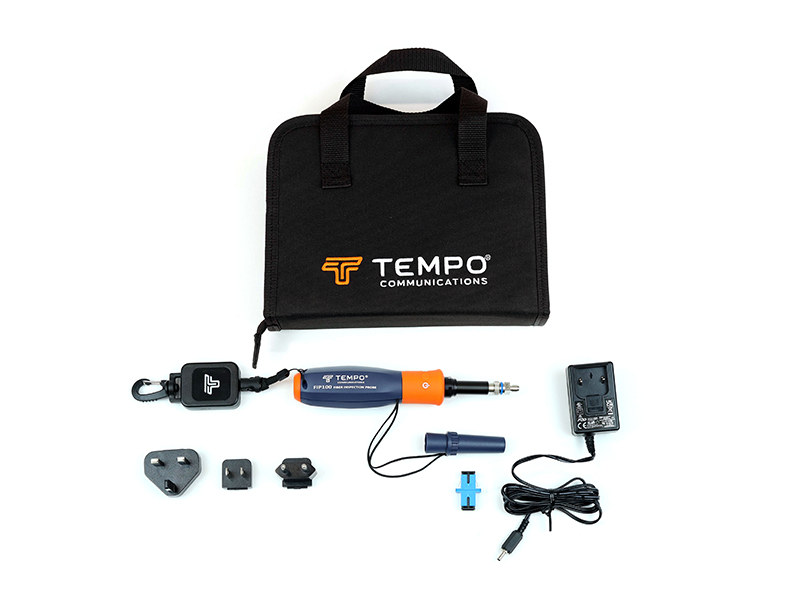

The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads.
With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result.
The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing.
Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.
Product Features
• Single-handed, one-button operation
• Auto focus, auto-capture, auto test
• LED pass/fail indicator on probe
• Small form factor enables inspection of difficult-to-reach ports
• Create and share reports on Android and iOS devices
• IEC, IPC and user-defined inspection criteria
• Wide range of adapter tips
• Test ferrule end faces and bulkheads compliant to IEC61300-3-35
Features
Applications
• Verify connector cleanliness before connecting
• Certify connector condition on installation
• Document connector damage when troubleshooting
• Inspection is essential for proper fiber handling in all networks
Pass/fail results in seconds: With the press of a single button, the FIP100 auto-focuses, captures, centers and analyzes the end-face image to industry standard IEC 61300-3-35, IPC-8497-1, AT&T TP-76461 and other user-defined criteria.
Untethered operation: One-button operation and pass/fail LED indicator enables operation without reference to the mobile app.
Wide range of adapter tips: Interchangeable adapter tips support fiber connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces.
Smart Device Apps:
• Auto focus, auto capture and auto test functions
• IEC, IPC, industry standard, and user-defined inspection rules
• Pinch-to-zoom fiber end-face images
• Report generation
• Multi-language Graphical User Interface (GUI)
• Day/time stamped job saving
