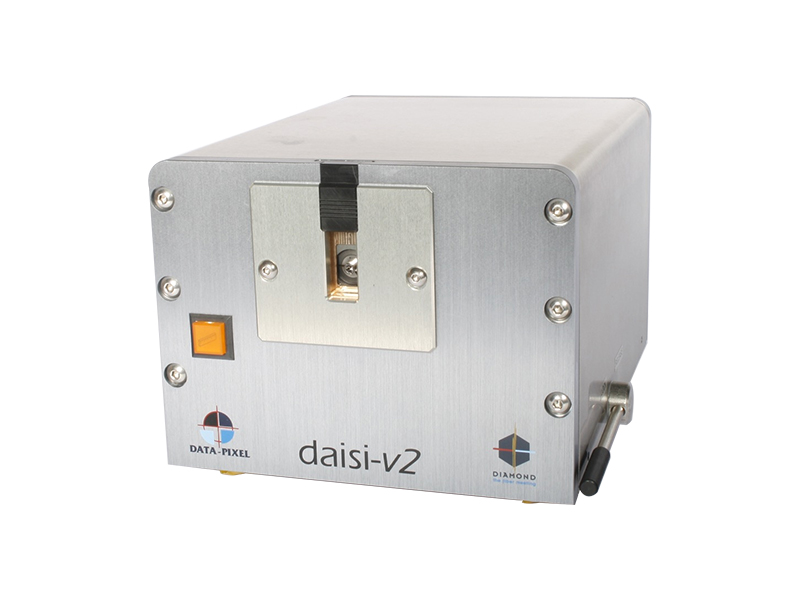

Characteristic

• Single machine measurement of PC/APC form plugs, connectors, and bare optical fibers Non-contact measurement
• Quick autofocus
• Simple one click control
• Servo control reference mirror for automatic vertex calibration
• The industry's most durable plug-in fixture with automatic locking function
• No external moving parts or adjusting screws
• Vibration insensitive
• Quick switching between PC and APC without the need to replace the core clamp
• Equipped with various connector adapters, the special design makes clamping very fast

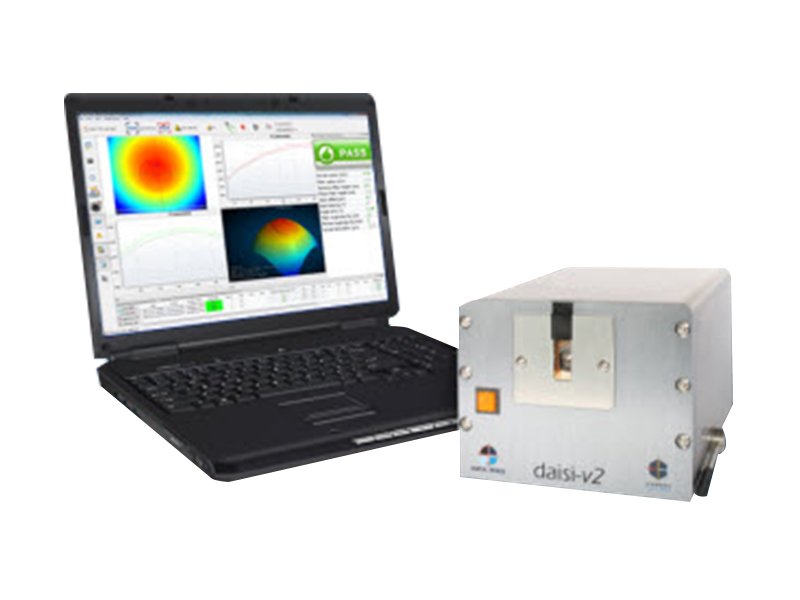

• Connect a separate USB 2.0 cable to the computer
• Scalable to white light scanning function for measuring MT-RJ

Measure

• Quickly and automatically measure parameters such as curvature radius, vertex offset, and fiber height

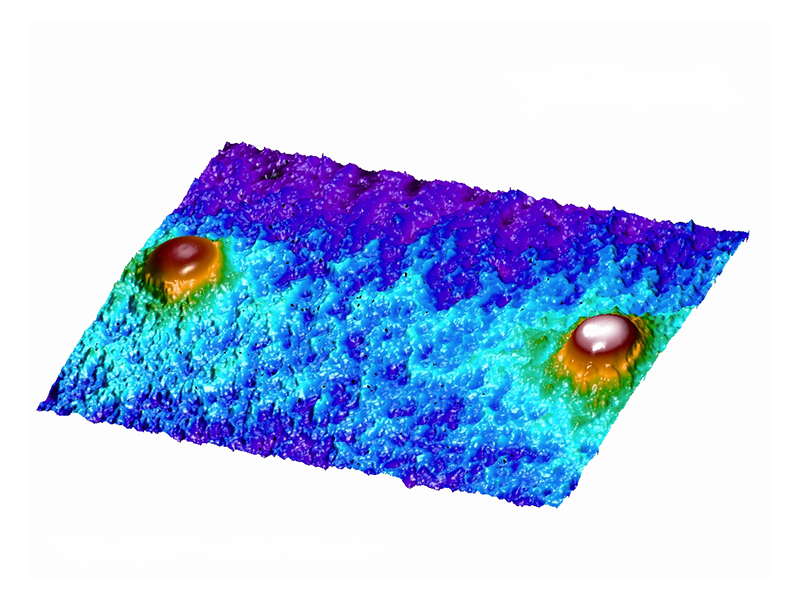

• Measure the surface roughness of optical fibers and inserts
• High precision measurement of bare fiber cutting angle
• Accurate measurement data with good repeatability

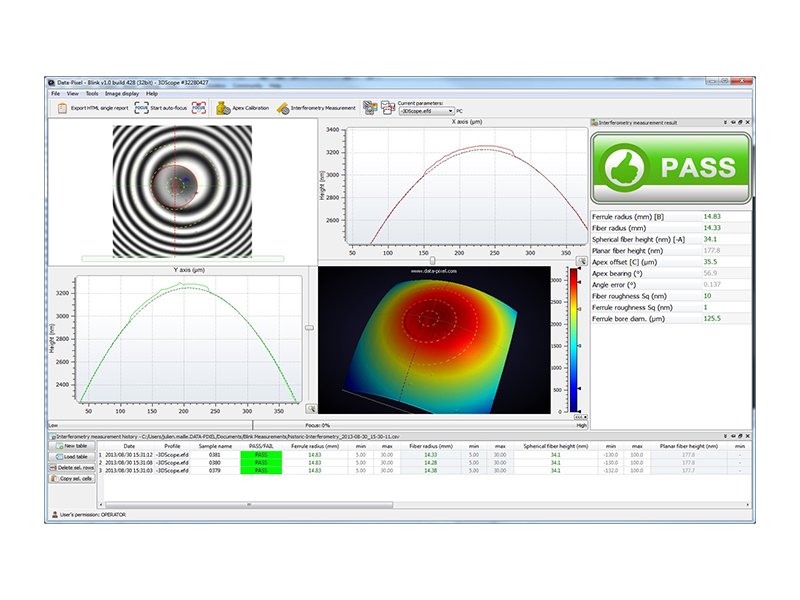

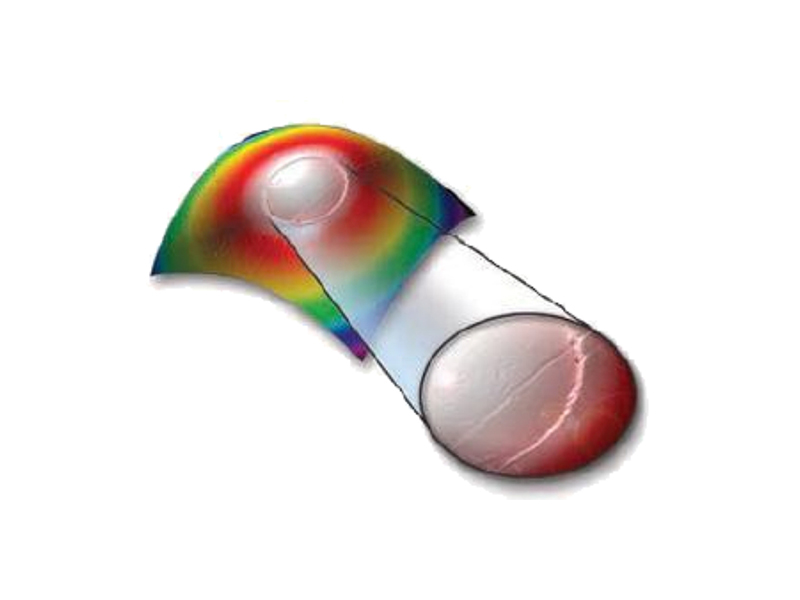

• High definition 2D&3D images
• Excel format test report and test history data report
• Interferometry meets industry standards

This instrument mainly measures the following parameters:

• Curvature radius - Ferrule radius;
• Apex Offset - Apex Offset;
• Fiber Height
• At the same time, it can also measure the fiber curvature radius, fiber plane height, angle, key error, fiber diameter, fiber/core roughness, and MT-RJ testing.
