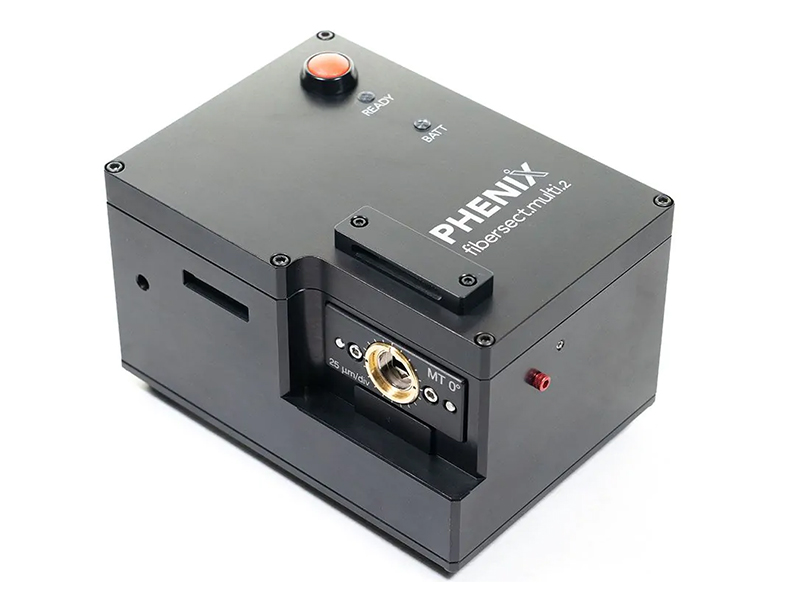

The fibersect.multi® mechanically cuts off the protruding epoxy and fibers of all ferrules and connectors, including MT ferrules and MTP® connectors and single fiber connectors and ferrules

HOW
• Simple, one button operation
• Fast, 1-4 second cut cycle time
• Adjustable cut length, cuts parallel to the face of the ferrule

WHY
• Increases throughput by significantly reducing core cracks
• Eliminates: scoring/cleaving, denubbing, air polishing
• Significantly reduces final polishing steps
• Flat cut improves polished end face geometry
• Preserves ferrule length – provides tighter control over spring force
• Minimizes polishing by cutting close to ferrule
• Easy-change adapters enable cutting of all ferrules and connectors

SPECS
Processing time: 1-4 s
Ferrule/Connector adapters: MT 0°/MT 8°/LC/LC-APC/LC-Duplex/SC/SC-APC + others
MT ferrule capabilities: 4 to 72 fibers
Adapter changeover time: 30 s
Allowable fiber protrusions from ferrule: 0 to 10 mm
Cut length: adjustable, 0-600 μm from face of ferrule
Cut flatness: +/- 10 μm
Options: vacuum dust collector, cut counter, foot switch
Power supply: 100-240 Vac, 50-60 Hz + rechargeable battery powered
Dimensions (W x D x H): 4.25 x 5.75 x 3 in. (108 x 146 x 76 mm)
Weight: 2 lbs (0.9 kg)
