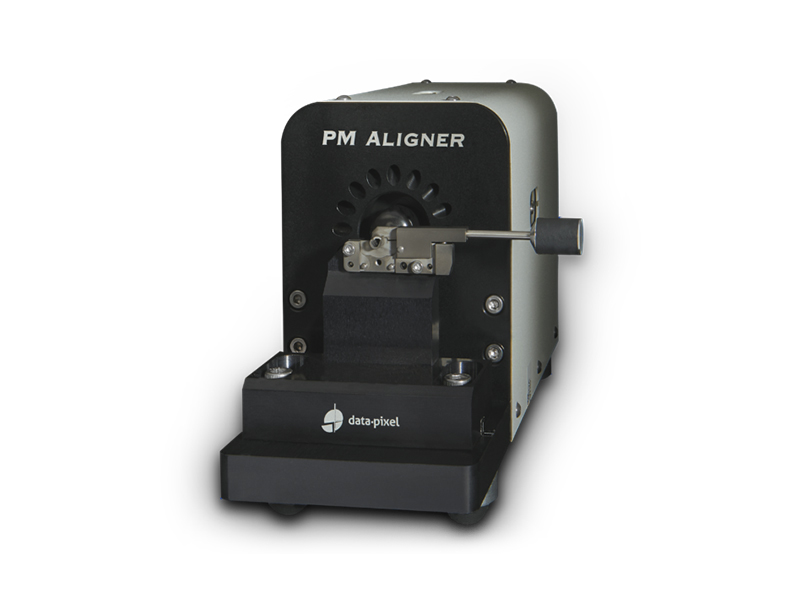

P MALIGNER-V2A ready-to-use solution to orientate Polarization Maintaining fibers inside connectors

Model Number：70-PM00-V2-M10-00Brands：DATA-PIXELRichen Code：83018000

PM Aligner-V2 is the simplest way to orientate precisely a PANDA Polarization Maintaining fiber inside a connector or ferrule. With a long working distance, PM Aligner-V2 allows the operator to work manually around the ferrule of the connector. After positionning, the curing phase becomes easy to realize without affecting on the PM fiber alignement.

Download

Consultation

Fill in the information and we will contact you as soon as possible

Introduction

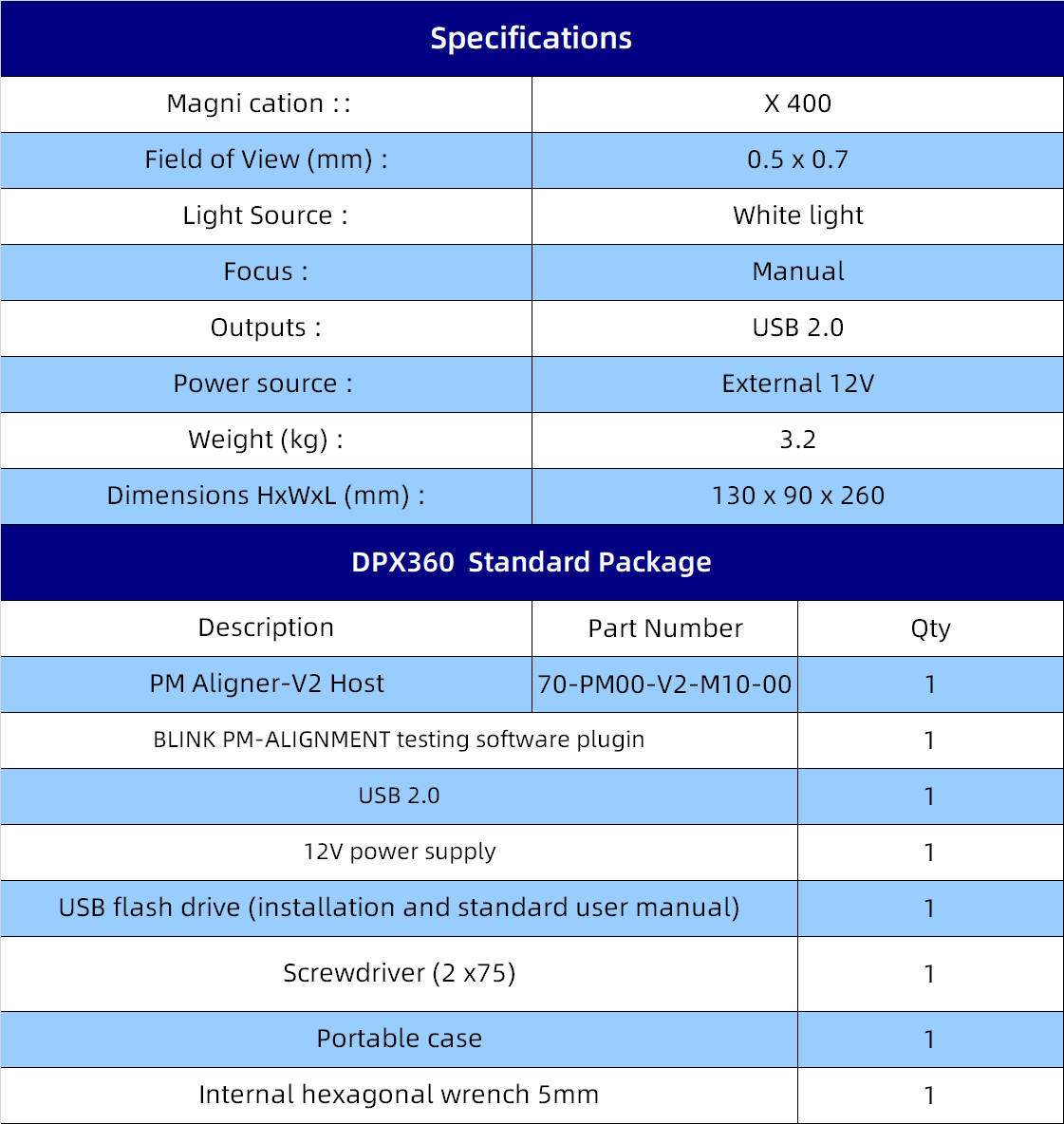

Specification
Accessories
Video
Q&A

KEYFEATURES :

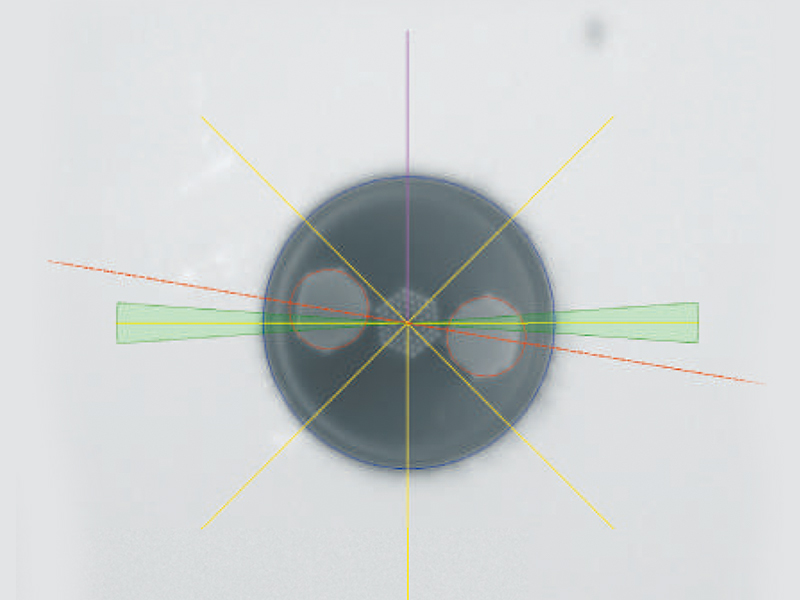

Measurement of PANDA style f bers
Long working distance
Automated and real time measurement
Easy calibration with Blink PM Alignment
High speed USB 2.0 for live digital image
Measurement data exported in standard CSV f le
Database connectivity

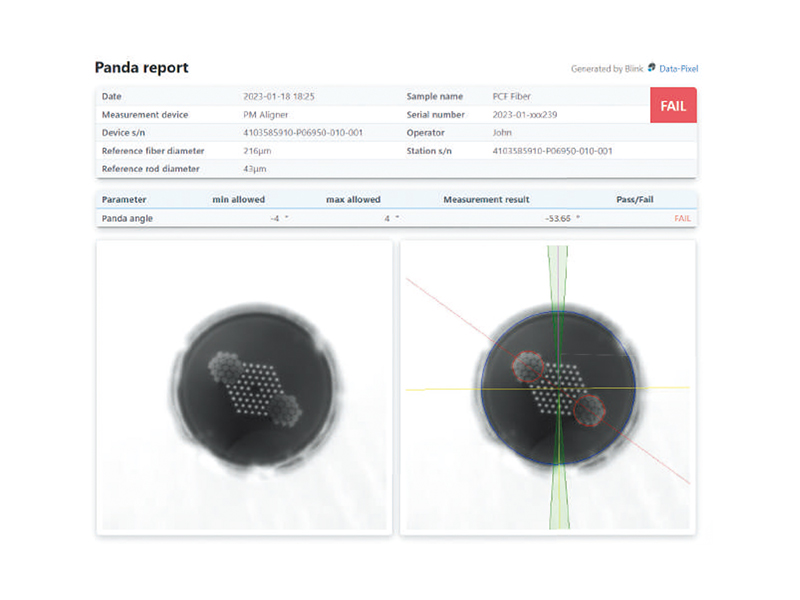

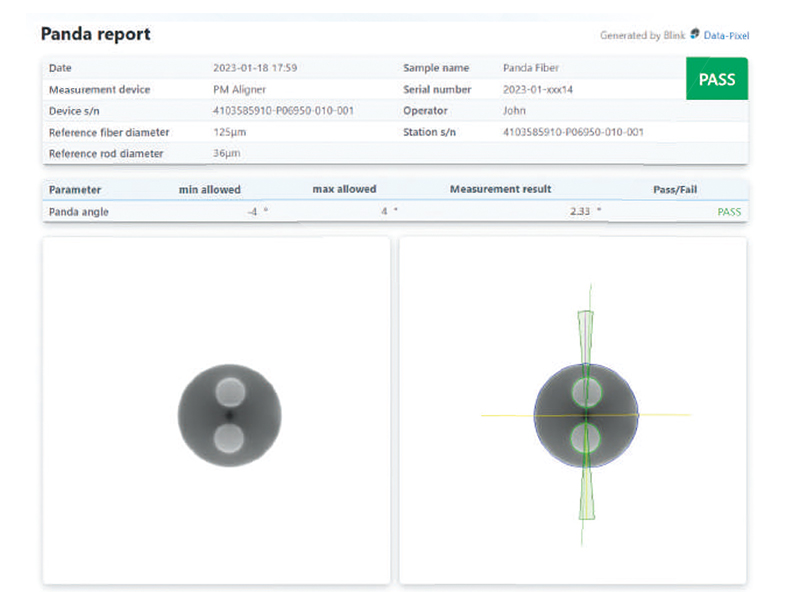

Measurement report in HTML format
Compatible with desktop PC, laptop, tablet PC
