Soft-Strip® MS-4T-12S-16 Precision Stripper
Model Number:MS-4T-12S-16Brands:Micro ElectronicsRichen Code:85017900
Soft-Strip® MS-4T-12S-16 Precision Stripper,Fiber Coating or Buffer Dia. (µm)to Strip:343μm - 407μm,Fiber Cladding Diameter to Expose:235μm - 280μm,Blade Set:MS1-RB-12S,Guide Assembly:MS1-RT-16,Buffer Stripping Handle:MS-4T-E. Soft-Strip® stripping tools from Mico Electronics have integral heating elements which enable them to soften and strip such coatings and insulations as Mylene, KAPTON, TEFLON, PVC, and HYTREL. The Soft-Strip® system permits precise stripping of these tough coatings with less than three pounds of peak pulling force for multi-fiber ribbon, and less than one pound for single fiber. The result is no fiber damage and higher quality splices and connections. Units are available for optical fiber (180-1000µm) and all standard multi-fiber ribbons (encapsulated, bonded, and ribbonized types). Custom tools are also available.

Soft-Strip® MS-4T-12S-16 Precision Stripper,Fiber Coating or Buffer Dia. (µm)to Strip:343μm - 407μm,Fiber Cladding Diameter to Expose:235μm - 280μm,Blade Set:MS1-RB-12S,Guide Assembly:MS1-RT-16,Buffer Stripping Handle:MS-4T-E.

Soft-Strip® stripping tools from Mico Electronics have integral heating elements which enable them to soften and strip such coatings and insulations as Mylene, KAPTON, TEFLON, PVC, and HYTREL.

The Soft-Strip® system permits precise stripping of these tough coatings with less than three pounds of peak pulling force for multi-fiber ribbon, and less than one pound for single fiber.

The result is no fiber damage and higher quality splices and connections. Units are available for optical fiber (180-1000µm) and all standard multi-fiber ribbons (encapsulated, bonded, and ribbonized types). Custom tools are also available.

Features
• Strips Coating / Buffer up to 900μm & Up To 12 - Fiber Ribbon
• Heats & Softens Coating Or Buffer
• Greatly Reduces Stripping Force
• Interchangeable / Replaceable StrippingBlades & Fiber Guides

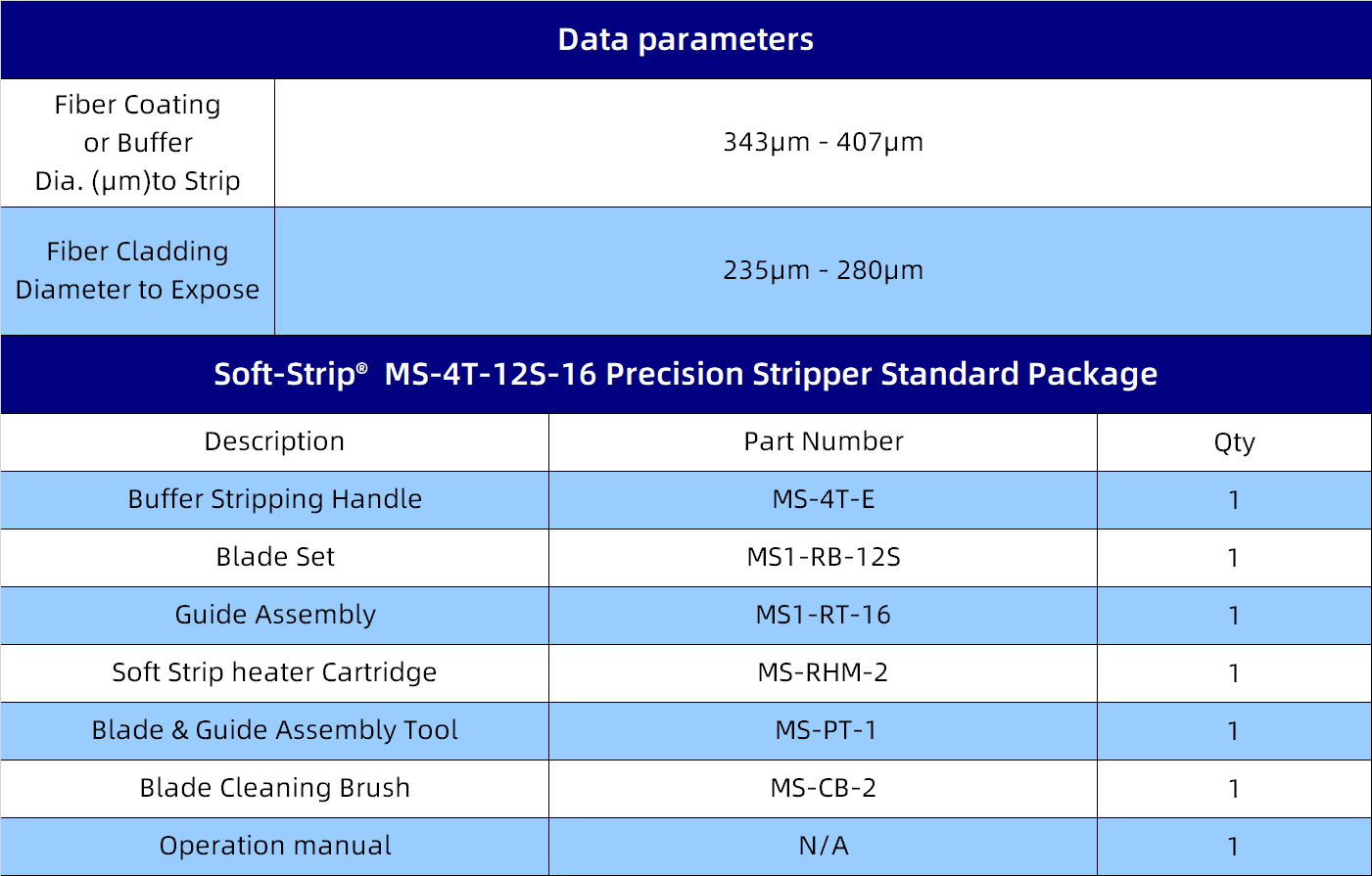

MS-4T-12S-16规格参数(英)

辅料配件(英)

Q: Thermal Stripping Procedure
A:  As shown in the figure

问答(英)


Q: Micro-Strip® /Soft-Strip® Cutter Blade Replacement
A: As shown in the figure

问答(英)1


Q: Soft-Strip® Tool Breakdown
A: As shown in the figure

问答(英)2
