SEIKOH GIKEN Connection adapters include SC connection adapter, LC connection adapter, FC connection adapter, Conversion connection adapter, MPO connection adapter, to meet the different connection adapter needs of customers.

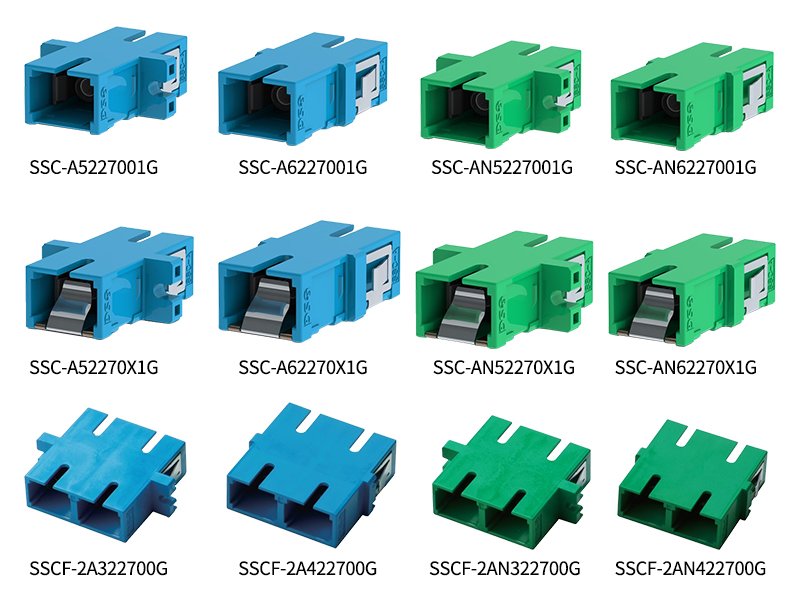

SC Adaptor

Features
• IEC 61754-4 compliant
• Telcordia GR-326-CORE Issue 4 compliant
• Insertion loss </=0.2dB (Singlemode)
• Precision Zirconia split sleeve
• Automatic Metal Shutter blockig optical light for eye protection also available
• Unique design of Automatic Metal Shutter has extreme durability to perform no position gap of shutter to secure optical power blocking
• RoHS compliant

Part Number	Describe	Product images
SSC-A5227001G	Simplex for PC
SSC-A6227001G	Simplex short flange for PC
SSC-AN5227001G	Simplex for Angled PC
SSC-AN6227001G	Simplex short flange for APC
SSC-A52270X1G	Simplex for PC with Shutter
SSC-A62270X1G	Simplex short flange for PC with Shutter
SSC-AN52270X1G	Simplex for Angled PC with Shutter
SSC-AN62270X1G	Simplex short flange for APC with Shutter
SSCF-2A322700G	Duplex for PC
SSCF-2A422700G	Duplex Short Flange for PC
SSCF-2AN322700G	Duplex for Angled PC
SSCF-2AN422700G	Duplex Short Flange for Angled PC

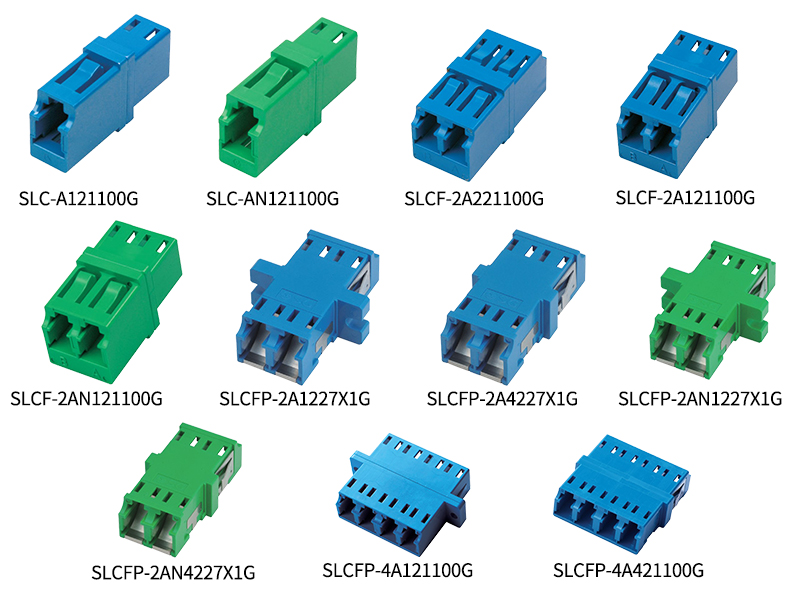

LC Adaptor

Features
• Comply with IEC 61754-20
• Precision Zirconia split sleeve
• SLCFP series also available with internal metal shutter on both sides
• Internal metal shutter can automatically open/close on connector insertion/removal

Part Number	Describe	Product images
SLC-A121100G	Simplex for PC
SLC-AN121100G	Simplex for Angled PC
SLCF-2A221100G	Duplex for PC
SLCF-2A121100G	Duplex Low Profile for PC
SLCF-2AN121100G	Duplex Low Profile for Angled PC
SLCFP-2A122701G	Duplex SC-Footprint for PC
SLCFP-2A1227X1G	Duplex SC-Footprint for PC With Shutter On One Side
SLCFP-2AN122701G	Duplex SC-Footprint For Angled PC
SLCFP-2AN1227X1G	Duplex SC-Footprint for Angled PC With Shutter On One Side
SLCFP-2A422701G	Duplex SC-Footprint Flangeless for PC - Premium
SLCFP-2A4227X1G	Duplex SC-Footprint Flangeless for PC With Shutter On One Side - Premium
SLCFP-2AN422701G	Duplex SC-Footprint Flangeless for Angled PC - Premium
SLCFP-2AN4227X1G	Duplex SC-Footprint Flangeless for Angled PC With Shutter On One Side -Premium
SLCFP-2A6228301G	Duplex SC-Footprint Flangeless for PC
SLCFP-2A62283X1G	Duplex SC-Footprint Flangeless for PC With Shutter On One Side
SLCFP-2AN6228301G	Duplex SC-Footprint Flangeless for Angled PC
SLCFP-2AN62283X1G	Duplex SC-Footprint Flangeless for Angled PC With Shutter On One Side
SLCFP-4A121100G	Quad SC-Footprint for PC
SLCFP-4A421100G	Quad SC-Footprint Short Flange for PC

FC Adaptor

Features
• Comply with JIS C5970 F01 and IEC 61754-13
• Precision Zirconia split sleeve

Part Number	Describe	Product images
SAA-422201G	Standard for PC
SNA-1224D0G	Standard for Angled PC (N-type)
SNA-1224K0G	Standard for Angled PC (R-type)
SAA-322201G	Without Flange for PC (D-hole type)
SNA-3224D0G	Without Flange for Angled PC (D-hole N-type)
SNA-3224K0G	Without Flange for Angled PC (D-hole R-type)
SNA-6214K0G	Oval Flange for Angled PC (R-type)

Conversion Adaptor

Features
• Precision Zirconia split sleeve

Part Number	Describe	Product images
SSC-FC-A122A02G	FC/SC for PC
SSC-FC-AN122BK1G	FC/SC for Angled PC (R-type)

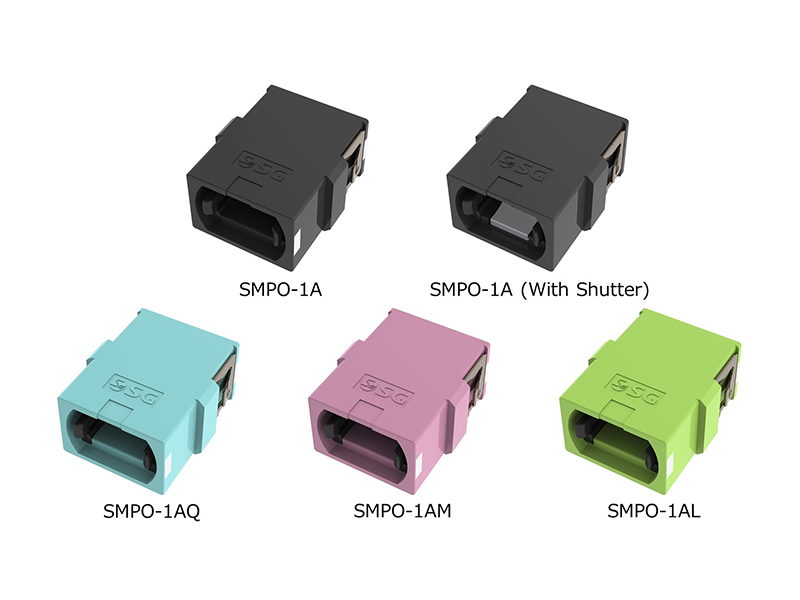

MPO Adaptor

Features
• Comply with IEC 61754-7 and JIS C 5982
• Unique one-piece housing design enables significant mechanical strength and durability
• Both Singlemode and Multimode with PC or Angled-PC are available
• Also available with internal metal shutter
• Internal metal shutter can automatically open/close on connector insertion/removal

Part Number	Describe	Product images
SMPO-1A212801G	Short flange（Black）
SMPO-1A2128X1G	Short flange（Black） with shutter（on one side）
SMPO-1AQ212801G	Short flange（Aqua）
SMPO-1AM212801G	Short flange（Heather Violet）
SMPO-1AL212801G	Short flange（Lime green）
