SEIKOH GIKEN SLCFP-2AN1 Series LC Duplex adaptor for Angled-PC SC-Footprint Type( With Shutter)
Model Number:SLCFP-2AN1227X1GBrands:SEIKOH GIKENRichen Code:80189400

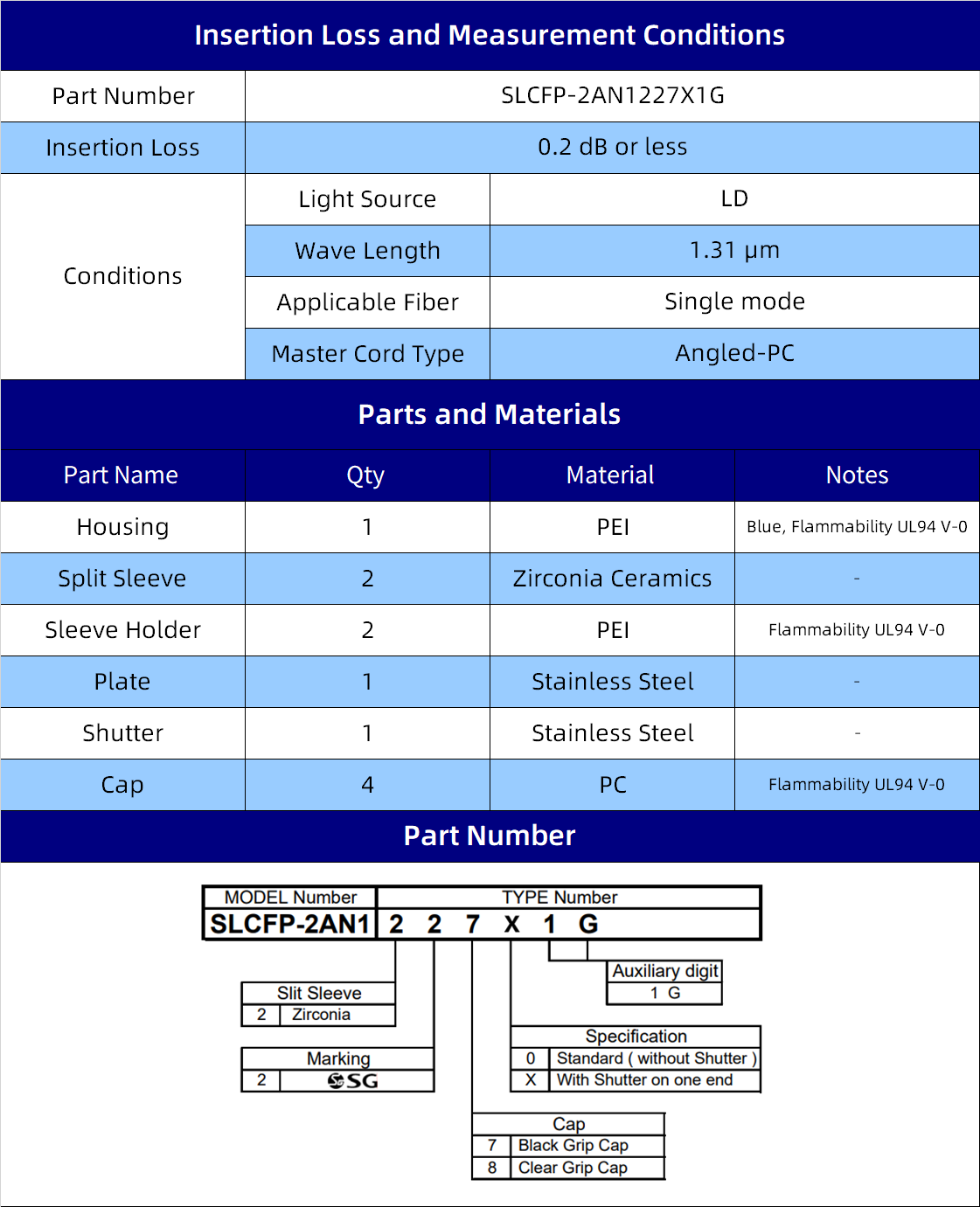

SEIKOH GIKEN SLCFP-2AN1 Series LC Duplex adaptor for Angled-PC SC-Footprint Type( With Shutter) . Insertion Loss:0.2 dB or less,Light Source:LD,Wave Length:1.31 µm,Applicable Fiber:Single mode,Master Cord Type:Angled-PC.

SEIKOH GIKEN SLCFP-2AN1 Series LC Duplex adaptor for Angled-PC SC-Footprint Type( With Shutter) . Insertion Loss:0.2 dB or less,Light Source:LD,Wave Length:1.31 µm,Applicable Fiber:Single mode,Master Cord Type:Angled-PC.

Features
• Comply with IEC 61754-20
• Precision Zirconia split sleeve
• SLCFP series also available with internal metal shutter on both sides
• Internal metal shutter can automatically open/close on connector insertion/removal


Precautions
• Storage temperature: -40 to +85 degrees C
• Storage humidity: 0 to 85%RH, non-condensing
• Contamination, oil, sweat and others debris on the inside of the slit sleeve may influence the performance of the product. If contamination is on the inside of the slit sleeve, clean the inside before connecting.
