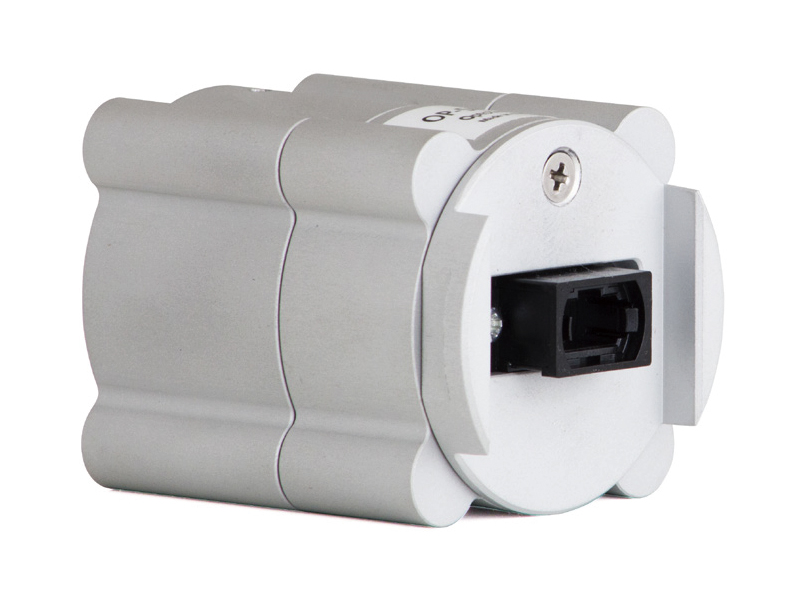

OP-SPHR integrating sphere

Model Number：OP-SPHRBrands：OptoTestRichen Code：82106901

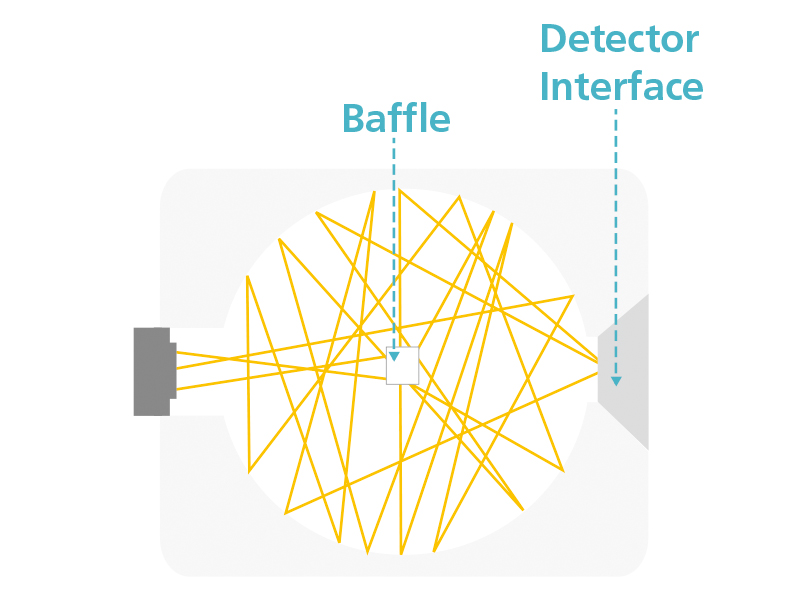

The OP-SPHR integrating sphere is designed to test high-density connectors (MTP?/MPO) or bare fibers. By uniformly reflecting incident light within the cavity, low polarization dependence is achieved, ensuring stable and high repeatability of insertion loss measurement The design of directly screwing on existing 1mm and 3mm probes can achieve 72 core MTP/MPO testing.

Download

OP-SPHR

Consultation

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

1. Uniform light distribution on the probe ensures ultra-high accuracy

2. Measurement range (+20dBm to -50dBm)

3. Interchangeable between different probes without affecting accuracy and repeatability

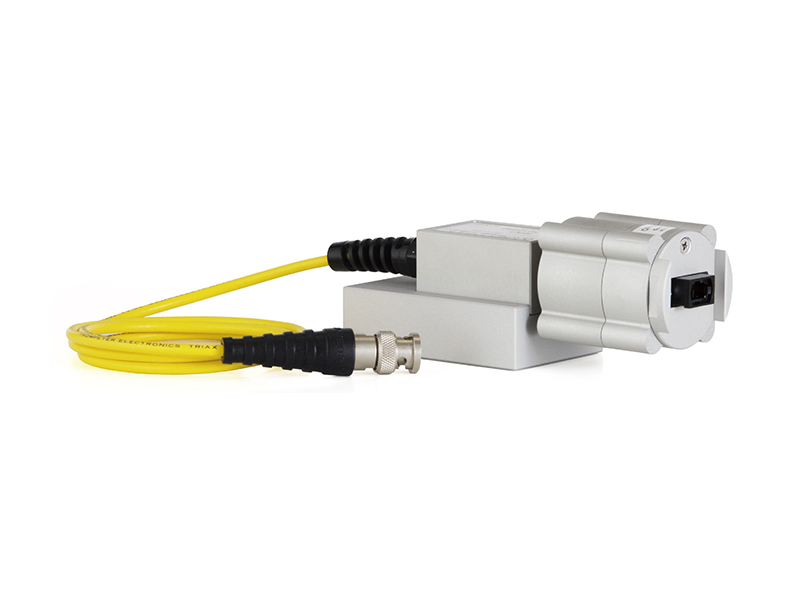

4. It can be directly connected to existing 1mm and 3mm probes, or directly connected to external probes

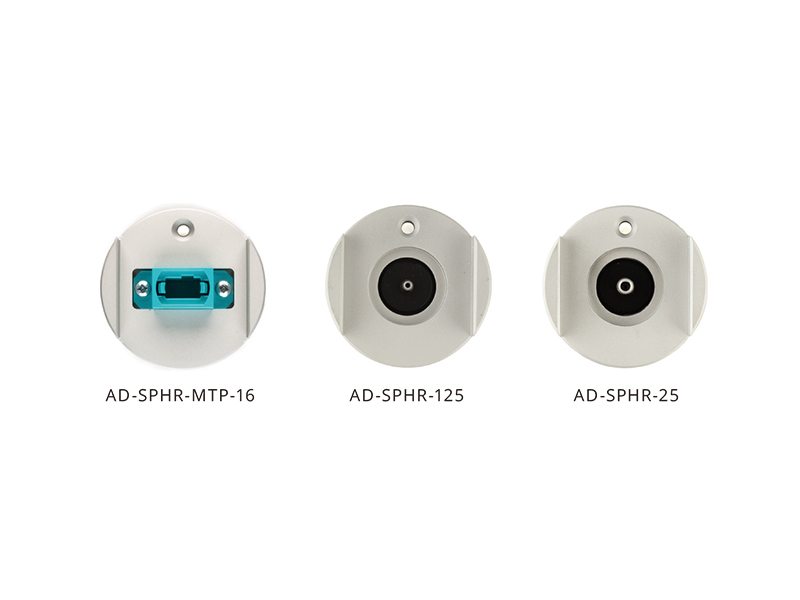

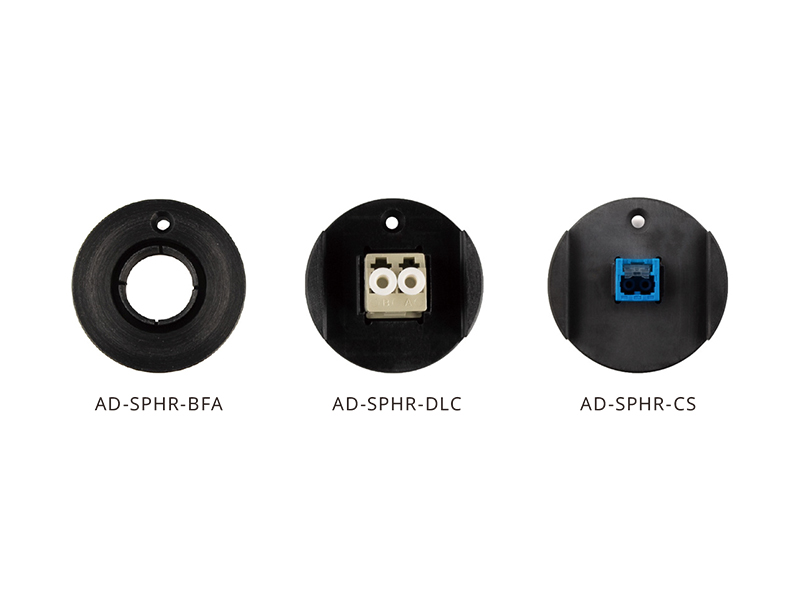

5. Complete adapter including MTP ®/ MPO, 1.25mm, 2.5mm, PRIZM connector

6. Single multi-core bare fiber adapter

7. No calibration required
