Extremely compact, electrically operated fiber blowing machine optimized for FTTX installation of blown fiber (EPFU) and micro/nano cables, ranging from 0.8 to 7.5 mm into ducts from 3 to 16 mm.

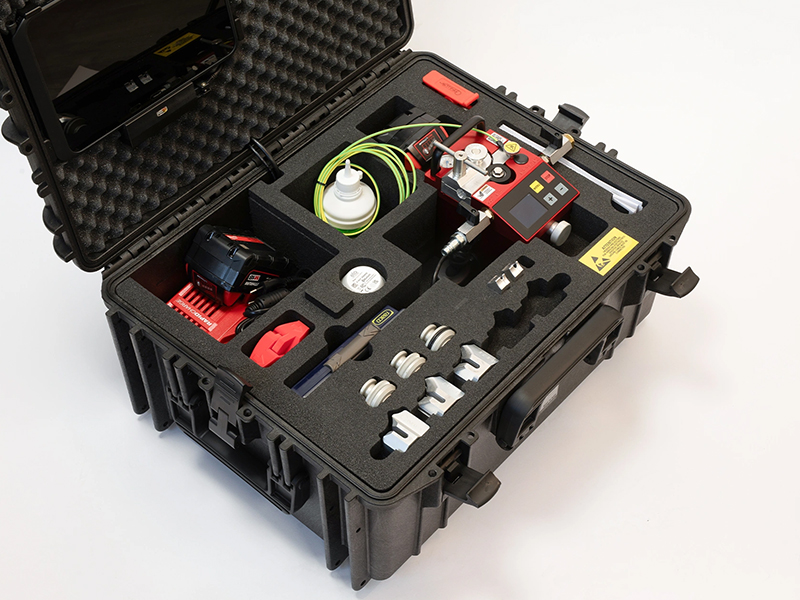

A fully digital control system with soft start, ultra-fast electronic fiber protection and memory functions, combined with a powerful 300 N motor, makes the machine highly flexible and efficient to use. The machine can be operated directly from its transport case.
V0 7.5 - KEY FEATURES
• Electrically operated with battery connection
• Ultra-fast electronic stopping and slipping protection (<60 ms)

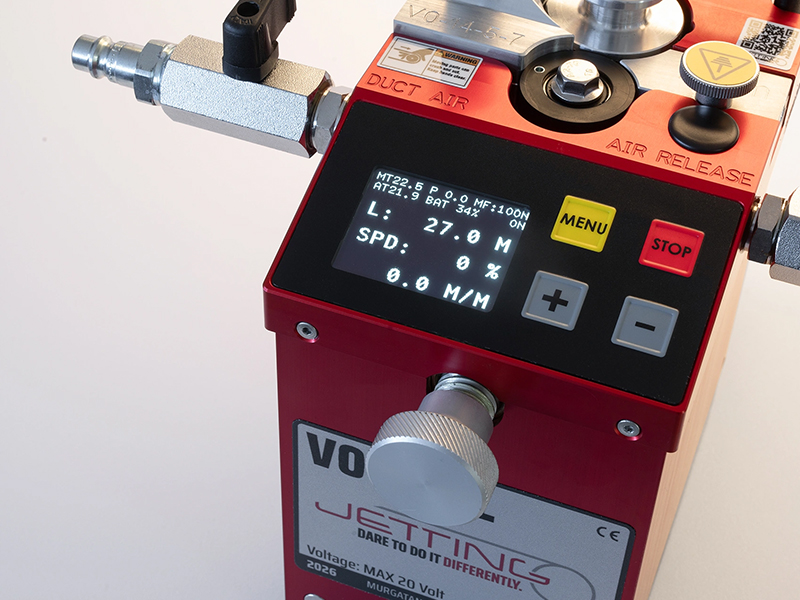

• Large display showing current speed, installed distance, pushing force and air pressure
• Maximum installation speed: 120 m/min
• Stepless pushing force up to 300 N
• Adjustable cable clamping force
• Compatible with JetLogger for installation documentation
• Soft start function for smooth operation and enhanced fber protection
• Memory function retains the last used settings, such as pushing force, even when powered of or during battery replacement.
• Service information memory displaying total installation distance since commissioning
• Integrated duct air temperature monitoring
• Duct air release valve for rapid and controlled pressure reduction
• Quick-change drive wheel system with magnetic mounting for fast and easy replacement
• Integrated WiFi for software updates and feature enhancements
• No tools required for operation or confguration
WHAT’S NEW IN THIS GENERATION
• New brushless motor delivering increased pushing force up to 300 N (previous model: up to 200 N)Ultra-fast electronic fber protection activated within <60 ms (previous model: <250 ms)
• New large high-contrast display (light text on black background) for improved visibility and control Extended cable capacity supporting fber cables up to 7.5 mm (previous model: up to 6.5 mm)

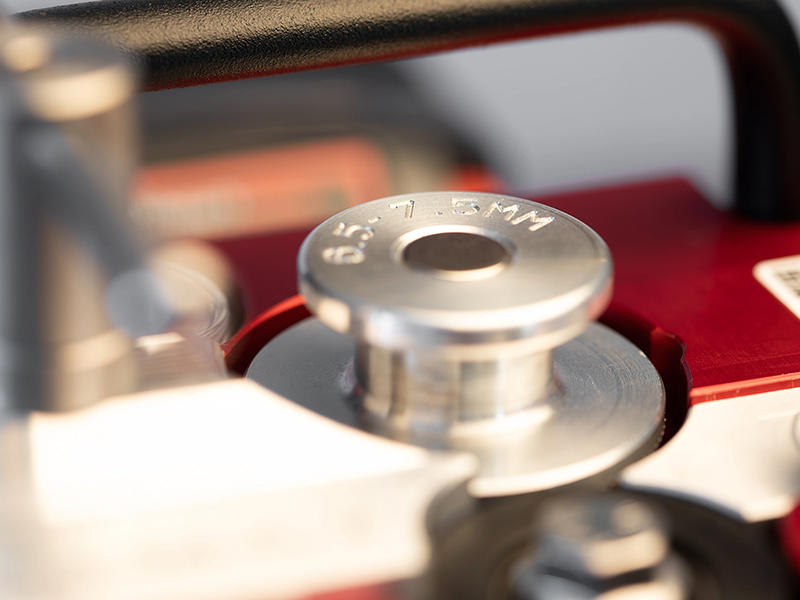

• New drive wheel and cable guide for 6.5–7.5 mm cables
• Improved airfow design with larger internal air channels
• New easy duct clamp tightening system for faster and more secure setup
• Integrated WiFi for simple and future-proof software updates
