The SFPS-V2 is an automated polishing system specifically designed to enhance the production efficiency of fiber optic connectors, with its core advantage lying in a high degree of automation. Except for connector loading and final inspection, it takes over nearly all polishing processes—including polishing pad transfer, abrasive application, polishing, film cleaning, and ferrule end-face cleaning—significantly reducing manual intervention.

The system utilizes a dedicated polisher featuring automatic clamping, network connectivity, and turntable origin reset functions, making it perfectly suited for factory automation requirements. For multi-fiber polishing, it is equipped with a dedicated water-wash system that effectively removes residues and prepares components for subsequent ultrasonic cleaning.

Furthermore, the SFPS-V2 is capable of handling large-diameter cables, thanks to its four-corner auto-clamp and Dynamic Pressure Control (DPC) technology. With a compact design and small footprint, the system supports low-volume, high-mix production, reduces labor hours by approximately 50%, and significantly lowers dependency on operators.

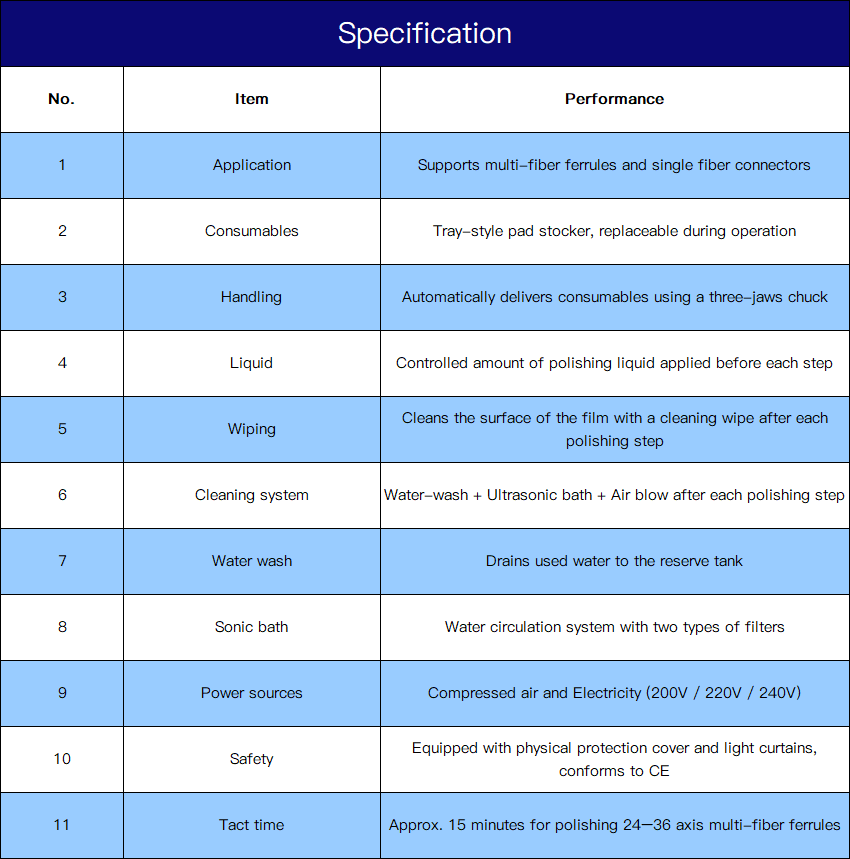

Its specifications indicate compatibility with both multi-fiber ferrules and single-fiber connectors, utilizing tray-style consumable management that allows for replacement during operation.

It also features comprehensive cleaning and safety systems, with a tact time of approximately 15 minutes for polishing 24-36 fiber multi-fiber ferrules.

Features：
1.Automatization of polishing process
• Except for the connector setting and inspection, SFPS-V2 automates all the conventional polishing and operator works

2 . Use of polishing machine for factory automation
• The dedicated polisher SFP-560A3C-FA offers three key features essential for FA
1)Auto clamping     2) Network connection     3) Turntable origin return

3. Water-wash system dedicated to Multi-Fiber polishing
• Effectively removes polishing residues, preparing the holder for ultrasonic cleaning.
* For multi-fiber polishing, it is necessary to use a polishing holder compatible

4. Designed for large-diameter cables
• A standout feature of the SFPS-V2—also available in the SFPS-V1—delivered through the polisher’s four-corner auto clamp, advanced DPC technology, and the optimized cable traveling distance provided by the automated machine.
(DPC: Dynamic Pressure Control)

5. Small-foot print
