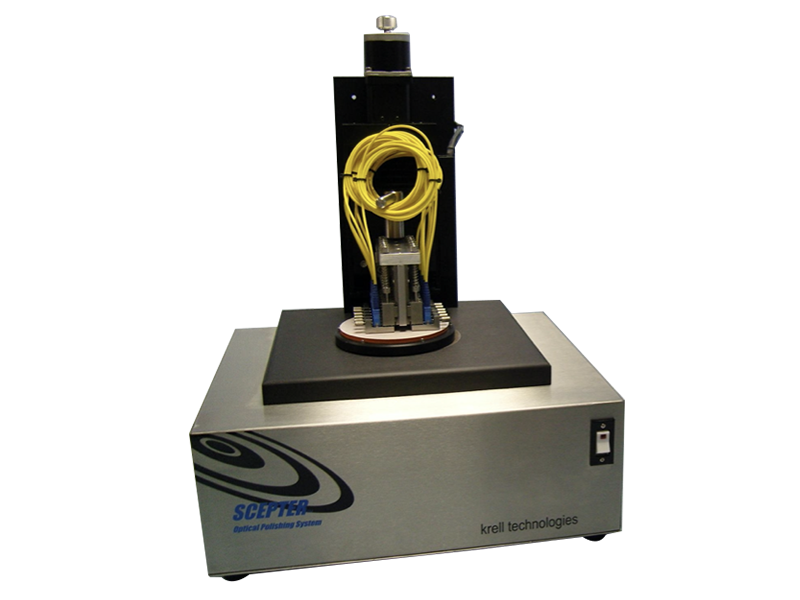

Krell Scepter™ SCP-200 Fiber Optic Polisher

Model Number：SCP-200Brands：Krell Richen Code：87007200

Scepter™ is PC controlled for consistent and Telcordia compliant mass polishing of optical connectors and bare fiber. Technicians are prompted through each process step via the user friendly interface. Various polishing procedures are easily programmed for all connector types and surface finishes. Scepter™ polishing fixtures incorporate Krell's unique independent suspension and optical alignment design for uniform polishing at each connector position, and maximum consumable film usage. In-line video inspection streamlines production and minimizes component handling.

Download

Krell Scepter™ SCP-200 Fiber Optic Polisher Brochure

Consultation

close

Fill in the information and we will contact you as soon as possible

Introduction

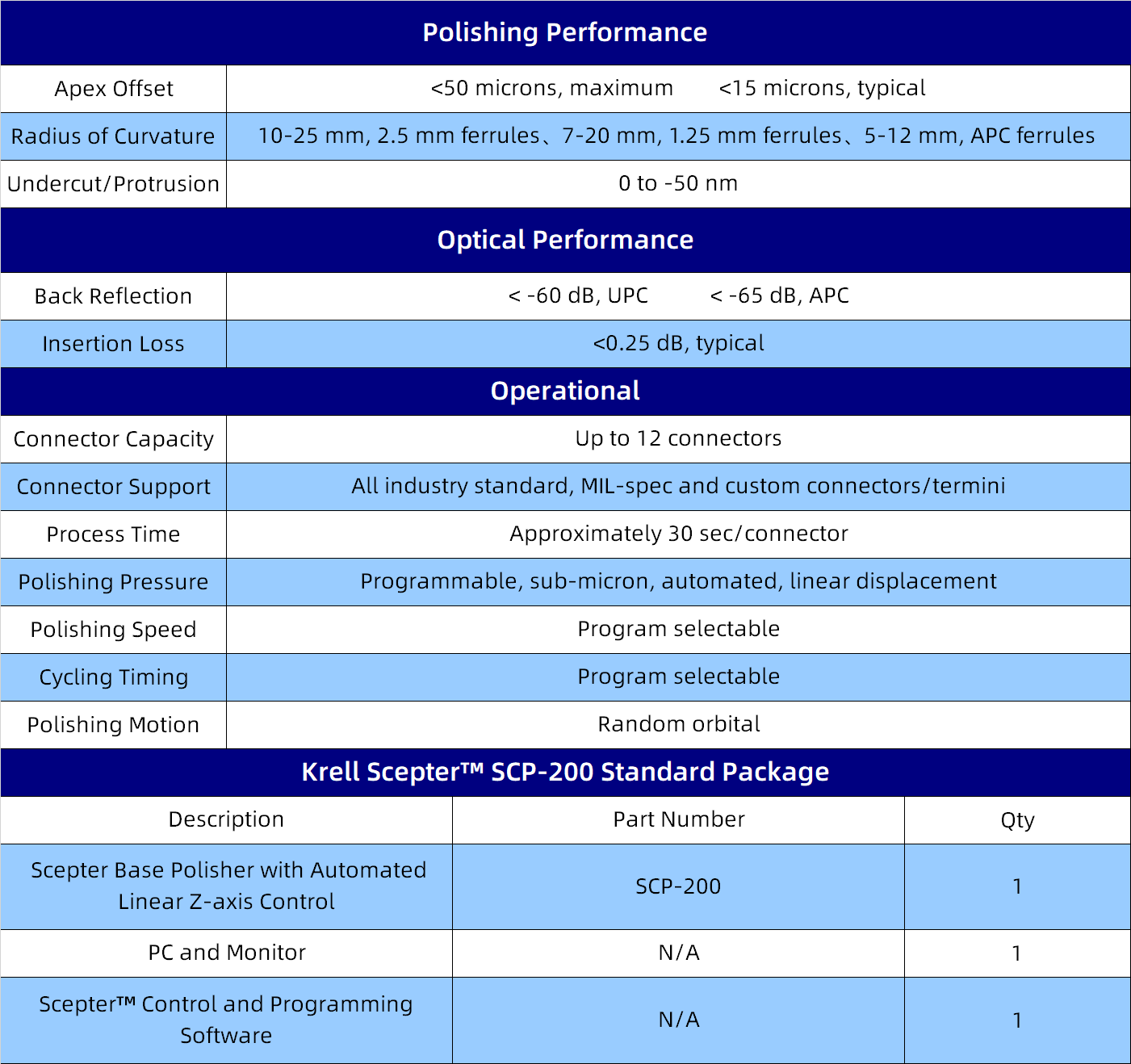

Specification
Accessories
Video
Q&A

Scepter™ is PC controlled for consistent and Telcordia compliant mass polishing of optical connectors and bare fiber. Technicians are prompted through each process step via the user friendly interface. Various polishing procedures are easily programmed for all connector types and surface finishes. Scepter™ polishing fixtures incorporate Krell's unique independent suspension and optical alignment design for uniform polishing at each connector position, and maximum consumable film usage. In-line video inspection streamlines production and minimizes component handling.

Features
• Precision optical polishing
• External PC control with microfeed™
• Independnt suspension workholders
• Supports all industry standard and
• Mil-Spec Connectors/Termini
• Air polishing in machine
• Telcordia compliant

Q：How does Scepter™ accommodate long cable assemblies?

A: Cable management brackets for supporting cable assemblies, connector patchcords and fibers are provided with each Scepter™.

Q：Are there any inspection options with Scepter™?

A: Yes, the SpecVision videoscope engages with Scepter™ workholders for connector surface inspection.

Q：Can the Scepter™ polish bare fibers?

A: Yes. Please forward dimensions to info@pztest.com, our engineer will help.

Q：How many connectors can Scepter™ polish at once?

A: 12

Q：What size film does Scepter™ use?

A: 5"

Q：How many connectors can I polish simultaneously?
A: You can polish up to 12 connectors simultaneously.

Q：What size is the Scepter™ platen?

A: Scepter platen supports 5" (5 inch) diameter polishing films.

Q：How many SC/UPC connectors can Scepter™ polish simultaneously?

A: Scepter™ can polish 12 connectors. Scepter™ X2 can polish 24 connectors.
