Finished product characteristics

Low insertion loss

Low return loss

Good repeatability

Good reliability

The 3D index of the end face exceeds the requirements of GR-326

Using Seiko Technology Research Autorotation&Public Transfer Patents

Independent pressure grinding fixture ensures the highest yield in the industry

No difference in grinding between single head and 48 head

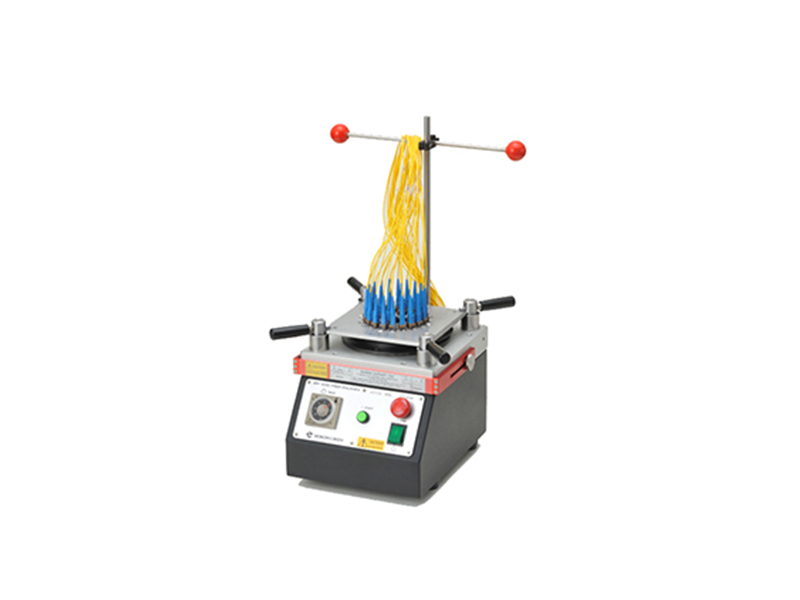

LC connectors up to 48, MU up to 40, SC up to 32

ST up to 28 grinding fixtures

Efficient and fast grinding process for various types of connectors

Easy maintenance

Special surface treatment for rotating and supporting discs to extend their service life

New Design of Pressure Spring and Pressure Block

New type of water blocking design for rotating and supporting discs

Less maintenance parts

Faster rotational speed - saves 30% grinding time compared to SFP-550B

Common to all existing SFP-550 fixtures

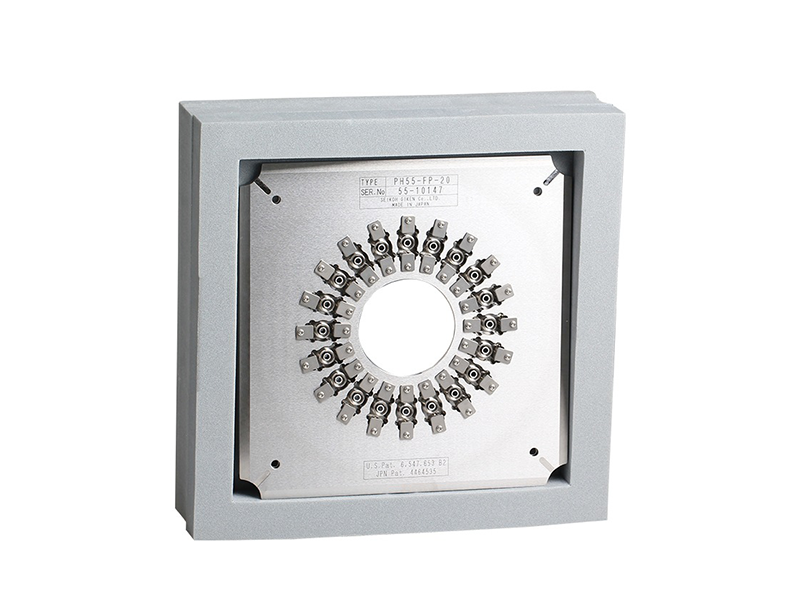

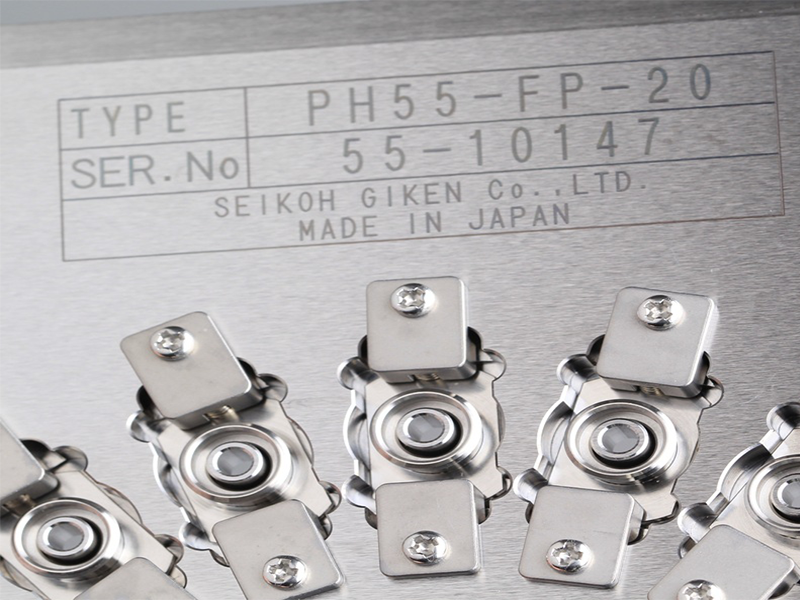

Grinding fixture

Standard independent pressure fixture

Independent pressure grinding fixture - applies independent pressure to each insert, and the length of the insert does not affect the grinding quality

Without the need for auxiliary inserts, a single insert can also be ground

Using Snap In adapters, SC LC MU connectors can be easily loaded and unloaded
